Directory Services & Federation (SAML, OIDC)

Overview

AWS provides multiple ways to integrate identity management into your cloud architecture. AWS Directory Service allows you to run Microsoft Active Directory (AD) in the cloud or connect to your on-premises directory. Federation enables users to access AWS resources using credentials from external identity providers via SAML 2.0 or OpenID Connect (OIDC).

Understanding when to use each directory type and federation method is critical for the SAA-C03 exam. Questions often present scenarios where you must choose between AWS Managed Microsoft AD, AD Connector, Simple AD, or federation services like Cognito and IAM Identity Center.

Key Decision Points

Need AD features in AWS? → AWS Managed Microsoft AD Need to connect to on-premises AD? → AD Connector Need basic AD on a budget? → Simple AD Need mobile/web app authentication? → Amazon Cognito Need workforce SSO? → IAM Identity Center

Exam Tip

Know the limitations of each directory type. Simple AD doesn't support trust relationships or MFA. AD Connector doesn't cache credentials - it's just a proxy. AWS Managed Microsoft AD is the only one that supports trust relationships with on-premises AD.

Architecture Diagram

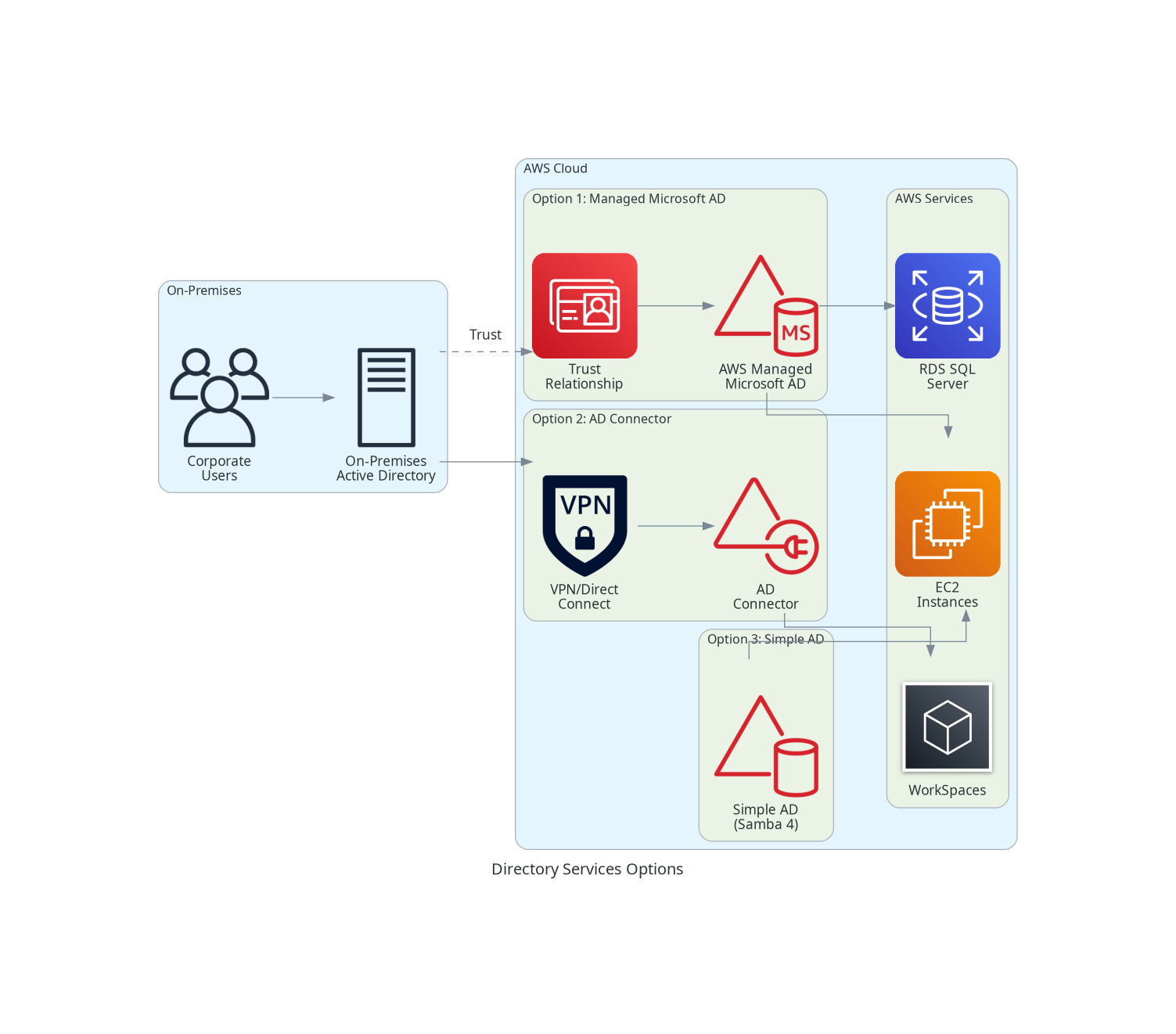

Directory Services Options — Figure 1: AWS Directory Service options and their use cases

Key Concepts

AWS Directory Service Options

AWS Managed Microsoft AD

AWS Managed Microsoft AD is a fully managed Microsoft Active Directory running on Windows Server.

Key Features:

Full Windows Server AD (not emulated)
Trust relationships with on-premises AD
Multi-AZ deployment for high availability
Automated backups and patching
Supports MFA (RADIUS integration)
Schema extensions supported

Best For:

Windows workloads needing full AD
Trust relationships with on-premises
Applications requiring LDAP
RDS for SQL Server authentication

AD Connector

AD Connector is a directory gateway that proxies requests to your on-premises Microsoft AD.

Key Features:

No data stored in AWS (proxy only)
Low latency to on-premises AD
Supports MFA via RADIUS
Works with WorkSpaces, WorkDocs, WorkMail

Limitations:

Requires VPN or Direct Connect to on-premises
Cannot be shared across AWS accounts
Not multi-VPC aware
No caching - dependent on connectivity

Best For:

Organizations with existing on-premises AD
When you don't want to replicate AD to cloud

Simple AD

Simple AD is a Samba 4-based directory compatible with Microsoft AD.

Key Features:

Lower cost than Managed Microsoft AD
Basic AD features (users, groups, policies)
Kerberos-based SSO
Two sizes: Small (500 users) or Large (5,000 users)

Limitations:

No trust relationships
No MFA support
No schema extensions
No PowerShell AD cmdlets
No DNS dynamic updates
Not compatible with RDS SQL Server

Best For:

Small organizations with basic AD needs
Linux workloads needing LDAP
Cost-sensitive environments

Directory Service Comparison

Feature	Managed Microsoft AD	AD Connector	Simple AD
Type	Full Windows AD	Proxy to on-prem	Samba-based AD
Trust Relationships	Yes	Via on-prem AD	No
MFA Support	Yes (RADIUS)	Yes (RADIUS)	No
Schema Extensions	Yes	Via on-prem AD	No
Users Supported	Unlimited	Depends on on-prem	500 or 5,000
Multi-AZ	Yes	Yes	Yes
Share Across Accounts	Yes	No	No
RDS SQL Server	Yes	Yes	No
Pricing	Highest	Medium	Lowest

Federation Protocols

SAML 2.0 Federation

Security Assertion Markup Language (SAML) is an XML-based standard for exchanging authentication data.

How It Works:

User authenticates with Identity Provider (IdP)
IdP generates SAML assertion (signed XML)
User presents assertion to AWS
AWS validates assertion and provides access

AWS Services Supporting SAML:

IAM (direct federation)
IAM Identity Center
Amazon Cognito (Identity Pools)

Common SAML IdPs:

Okta, Azure AD, Ping Identity
ADFS (Active Directory Federation Services)
Google Workspace

OpenID Connect (OIDC) Federation

OpenID Connect is a modern authentication protocol built on OAuth 2.0.

How It Works:

User authenticates with OIDC provider
Provider issues ID token (JWT format)
Application exchanges token for AWS credentials
AWS STS validates and issues temporary credentials

AWS Services Supporting OIDC:

IAM (web identity federation)
Amazon Cognito (User Pools & Identity Pools)
EKS (for pod IAM roles)

Common OIDC Providers:

Google, Facebook, Amazon (social)
Okta, Auth0, Azure AD
GitHub (for EKS IRSA)

Amazon Cognito

Amazon Cognito provides authentication for web and mobile applications.

Two Components:

User Pools:

User directory for app authentication
Sign-up and sign-in functionality
Social and SAML/OIDC federation
MFA support
JWT token generation

Identity Pools (Federated Identities):

Exchange tokens for AWS credentials
Supports authenticated and guest access
Maps users to IAM roles
Fine-grained access control

Use Together: User Pool authenticates → Identity Pool provides AWS credentials

Cognito User Pools vs Identity Pools

Aspect	User Pools	Identity Pools
Purpose	Authentication (who are you)	Authorization (what can you access)
Output	JWT tokens	AWS credentials
Federation	SAML, OIDC, social	User pool tokens, SAML, social
User Storage	Yes (directory)	No (maps identities)
MFA	Yes	Via User Pool
Best For	App sign-in	AWS resource access

How It Works

Federation Architecture

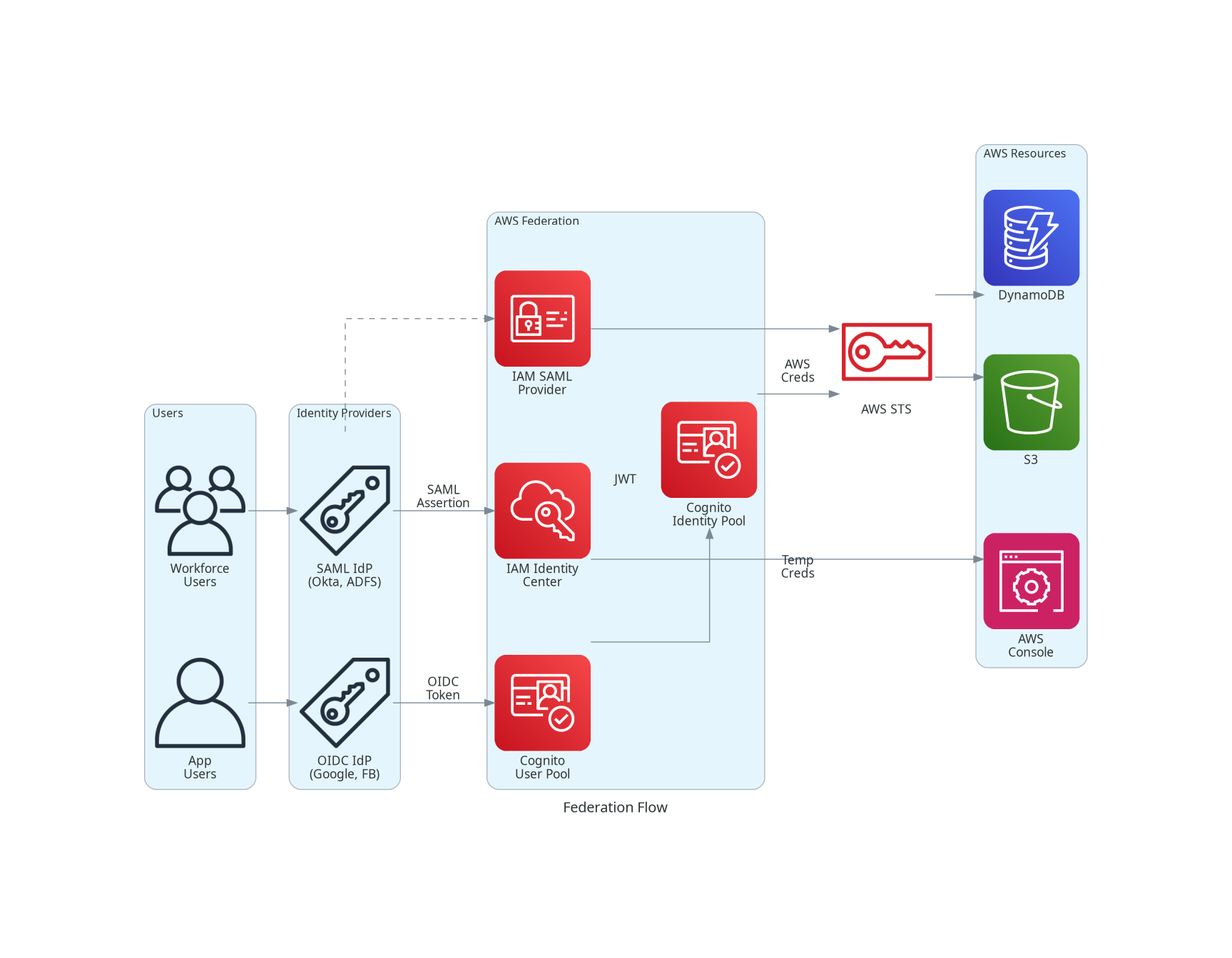

Federation Flow — Figure 2: SAML and OIDC federation flow for AWS access

SAML Federation with IAM

Step 1: Configure SAML Identity Provider in IAM

SHCreate SAML Identity Provider (CLI)

# Create SAML provider with metadata from your IdP
aws iam create-saml-provider \
  --name ExampleOktaProvider \
  --saml-metadata-document file://metadata.xml

Step 2: Create IAM Role for Federated Users

JSONSAML Federation Trust Policy

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::123456789012:saml-provider/ExampleOktaProvider"
      },
      "Action": "sts:AssumeRoleWithSAML",
      "Condition": {
        "StringEquals": {
          "SAML:aud": "https://signin.aws.amazon.com/saml"
        }
      }
    }
  ]
}

Step 3: Map IdP Groups to IAM Roles

Configure your IdP to include role ARN in SAML assertions:

Attribute: https://aws.amazon.com/SAML/Attributes/Role
Value: arn:aws:iam::123456789012:role/FederatedRole,arn:aws:iam::123456789012:saml-provider/ExampleOktaProvider

OIDC Federation with Cognito

Step 1: Create Cognito User Pool

SHCreate User Pool (CLI)

aws cognito-idp create-user-pool \
  --pool-name MyAppUserPool \
  --policies "PasswordPolicy={MinimumLength=8,RequireUppercase=true,RequireLowercase=true,RequireNumbers=true}" \
  --auto-verified-attributes email \
  --mfa-configuration OPTIONAL

Step 2: Create Identity Pool

SHCreate Identity Pool (CLI)

aws cognito-identity create-identity-pool \
  --identity-pool-name MyAppIdentityPool \
  --allow-unauthenticated-identities \
  --cognito-identity-providers \
    ProviderName=cognito-idp.us-east-1.amazonaws.com/us-east-1_abc123,ClientId=1234567890abcdef

Step 3: Configure IAM Roles for Identity Pool

JSONIdentity Pool Trust Policy

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "cognito-identity.amazonaws.com"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "cognito-identity.amazonaws.com:aud": "us-east-1:12345678-1234-1234-1234-123456789012"
        },
        "ForAnyValue:StringLike": {
          "cognito-identity.amazonaws.com:amr": "authenticated"
        }
      }
    }
  ]
}

Directory Service Setup

AWS Managed Microsoft AD

SHCreate Managed Microsoft AD (CLI)

aws ds create-microsoft-ad \
  --name corp.example.com \
  --short-name CORP \
  --password 'ComplexPassword123!' \
  --edition Standard \
  --vpc-settings VpcId=vpc-12345678,SubnetIds=subnet-11111111,subnet-22222222

AD Connector

SHCreate AD Connector (CLI)

aws ds connect-directory \
  --name corp.example.com \
  --short-name CORP \
  --password 'ServiceAccountPassword!' \
  --size Small \
  --connect-settings VpcId=vpc-12345678,SubnetIds=subnet-11111111,subnet-22222222,CustomerDnsIps=10.0.0.10,10.0.0.11,CustomerUserName=svc_adconnector

Use Cases

Use Case 1: Enterprise Windows Workloads

Scenario: Company migrating Windows servers to AWS needs AD integration for authentication.

Solution:

Deploy AWS Managed Microsoft AD
Establish trust with on-premises AD
Join EC2 instances to domain
Use existing AD credentials

Use Case 2: Hybrid Identity with Existing AD

Scenario: Company wants to use existing on-premises AD for AWS services without replicating data.

Solution:

Deploy AD Connector
Configure VPN or Direct Connect
Configure WorkSpaces/WorkMail to use AD Connector
Users authenticate with on-premises credentials

Scenario: Mobile app needs Google/Facebook login with access to S3 for user data.

Solution:

Create Cognito User Pool with social IdP federation
Create Identity Pool linked to User Pool
Configure IAM role with S3 access (scoped to user ID)
App uses Cognito SDK for authentication

Use Case 4: Workforce SSO to AWS Console

Scenario: 500 employees need console access using corporate Okta credentials.

Solution:

Configure IAM Identity Center
Set up Okta as external SAML IdP
Create permission sets for different roles
Assign users/groups to accounts

Use Case 5: B2B Partner Access

Scenario: External partners need temporary access to specific AWS resources.

Solution:

Create SAML federation with partner's IdP
Create IAM role with limited permissions
Partner users authenticate via their IdP
Receive temporary AWS credentials

Best Practices

Directory Service Best Practices

Choose Based on Requirements - Don't over-provision; Simple AD may be enough
Deploy Multi-AZ - All directory types support Multi-AZ for resilience
Use Separate Subnets - Deploy directory in dedicated subnets
Monitor with CloudWatch - Track directory health and performance
Regular Snapshots - Enable automated backups for recovery
Secure Service Accounts - Use strong passwords, rotate regularly

Federation Best Practices

Use IAM Identity Center for Workforce - Preferred over direct IAM SAML
Use Cognito for Customer Identity - Purpose-built for app authentication
Implement MFA - Require MFA at IdP level
Short Session Durations - Minimize credential lifetime
Audit Federation Events - Monitor with CloudTrail
Map Groups to Roles - Don't create individual role assignments

Common Exam Scenarios

Exam Scenarios

Scenario	Solution	Why
Windows EC2 instances need domain join	AWS Managed Microsoft AD	Full AD features for Windows workloads
Use existing on-premises AD without sync	AD Connector	Proxy to on-prem, no data in cloud
Small team needs basic user directory	Simple AD	Cost-effective for basic needs
Mobile app needs Facebook/Google login	Cognito User Pool with social IdP	Built-in social federation
App users need S3 access based on identity	Cognito Identity Pool	Exchange tokens for AWS credentials
Enterprise employees need AWS Console SSO	IAM Identity Center with SAML	Workforce SSO solution
Trust relationship between cloud and on-prem AD	AWS Managed Microsoft AD	Only option supporting AD trusts
Third-party SaaS needs temporary AWS access	IAM SAML federation	Cross-organization federation

Common Pitfalls

Pitfall 1: Choosing Simple AD When You Need Trusts

Mistake: Selecting Simple AD when trust relationships are required.

Why it fails:

Simple AD does not support trust relationships
Cannot connect to on-premises AD forest
Limited to standalone directory

Correct Approach:

Use AWS Managed Microsoft AD for trust relationships
Or use AD Connector to proxy to on-premises AD

Pitfall 2: AD Connector Without Redundant Connectivity

Mistake: Using AD Connector with single VPN connection.

Why it's risky:

AD Connector is a proxy - no caching
If connectivity fails, authentication fails
Single point of failure

Correct Approach:

Deploy redundant VPN or Direct Connect
Consider AWS Managed Microsoft AD with trust for resilience
Monitor connectivity health

Pitfall 3: Confusing Cognito User Pools and Identity Pools

Mistake: Using Identity Pool for authentication or User Pool for AWS credentials.

Why it causes issues:

User Pools = authentication (JWT tokens)
Identity Pools = authorization (AWS credentials)
Using wrong one won't achieve goal

Correct Approach:

Use User Pool for sign-in/sign-up
Use Identity Pool to exchange tokens for AWS credentials
Often used together in sequence

Pitfall 4: Embedding Federation Credentials in Apps

Mistake: Hardcoding IdP metadata or secrets in application code.

Why it's dangerous:

Credentials can be exposed
Difficult to rotate
Violates security best practices

Correct Approach:

Use AWS Secrets Manager for sensitive data
Use Cognito SDK which handles token management
Store IdP configuration in environment variables

Test Your Knowledge

Which AWS Directory Service option supports trust relationships with on-premises Active Directory?

ASimple AD

BAD Connector

CAWS Managed Microsoft AD

DAmazon Cognito

A mobile application needs to allow users to sign in with their Facebook accounts and then access user-specific data in S3. What AWS services should be used?

AIAM Identity Center with SAML

BCognito User Pool + Identity Pool

CDirect IAM SAML federation

DSimple AD with RADIUS

What is the key difference between AD Connector and AWS Managed Microsoft AD?

AAD Connector supports MFA, Managed AD does not

BAD Connector stores user data in AWS, Managed AD does not

CAD Connector is a proxy to on-premises AD, Managed AD runs AD in AWS

DAD Connector is cheaper for large organizations

Which federation protocol uses XML-based assertions for authentication?

AOAuth 2.0

BOpenID Connect

CSAML 2.0

DKerberos

Security

AWS IAM Identity Center

Preferred solution for workforce SSO using SAML/OIDC federation

Security

Amazon Cognito

Customer identity and access management for web/mobile apps

Security

AWS Directory Service

Managed directory services including Microsoft AD, Simple AD, AD Connector

Security

AWS STS

Issues temporary credentials for federated users via AssumeRoleWithSAML/WebIdentity

End User Computing

Amazon WorkSpaces

Managed virtual desktops that integrate with Directory Service

Quick Reference

Directory Service Sizing

Service	Size	Users	Use Case
Simple AD	Small	Up to 500	Small teams, testing
Simple AD	Large	Up to 5,000	Medium organizations
AD Connector	Small	Up to 500	Small hybrid deployments
AD Connector	Large	Up to 5,000	Large hybrid deployments
Managed AD	Standard	Up to 5,000	Most production workloads
Managed AD	Enterprise	Up to 100,000+	Large enterprises

Federation Method Selection

When to Use Each Federation Method

Scenario	Recommended Service	Protocol
Workforce SSO to AWS Console	IAM Identity Center	SAML 2.0
Mobile app with social login	Cognito User Pool	OIDC
App users need AWS credentials	Cognito Identity Pool	OIDC/SAML
Third-party vendor AWS access	IAM SAML Provider	SAML 2.0
Kubernetes pod IAM roles (EKS)	IAM OIDC Provider	OIDC
Enterprise SSO to AWS Console	IAM Identity Center	SAML 2.0

CLI Commands Reference

SHDirectory Service CLI Commands

# List directories
aws ds describe-directories

# Create Microsoft AD
aws ds create-microsoft-ad --name corp.example.com --password 'Password' --edition Standard --vpc-settings VpcId=vpc-xxx,SubnetIds=subnet-xxx

# Create trust relationship
aws ds create-trust --directory-id d-xxx --remote-domain-name onprem.example.com --trust-password 'TrustPassword' --trust-direction Two-Way

# Create AD Connector
aws ds connect-directory --name corp.example.com --password 'Password' --size Small --connect-settings VpcId=vpc-xxx,SubnetIds=subnet-xxx,CustomerDnsIps=10.0.0.10

# Delete directory
aws ds delete-directory --directory-id d-xxx

SHCognito CLI Commands

# Create User Pool
aws cognito-idp create-user-pool --pool-name MyPool

# Create User Pool Client
aws cognito-idp create-user-pool-client --user-pool-id us-east-1_xxx --client-name MyAppClient

# Create Identity Pool
aws cognito-identity create-identity-pool --identity-pool-name MyIdentityPool --allow-unauthenticated-identities

# List User Pools
aws cognito-idp list-user-pools --max-results 10

# Get Identity Pool roles
aws cognito-identity get-identity-pool-roles --identity-pool-id us-east-1:xxx

SAML Attributes for AWS

TEXTRequired SAML Attributes

# Role attribute (required)
Name: https://aws.amazon.com/SAML/Attributes/Role
Value: arn:aws:iam::ACCOUNT:role/ROLE,arn:aws:iam::ACCOUNT:saml-provider/PROVIDER

# Session duration (optional)
Name: https://aws.amazon.com/SAML/Attributes/SessionDuration
Value: 3600 (seconds, max 43200)

# Role session name (optional but recommended)
Name: https://aws.amazon.com/SAML/Attributes/RoleSessionName
Value: user@example.com

Key Concepts

Directory Services & Federation (SAML, OIDC)

Overview

Key Decision Points

Architecture Diagram

Key Concepts

AWS Directory Service Options

AWS Managed Microsoft AD

AD Connector

Simple AD

Directory Service Comparison

Federation Protocols

SAML 2.0 Federation

OpenID Connect (OIDC) Federation

Amazon Cognito

Amazon Cognito

Cognito User Pools vs Identity Pools

How It Works

Federation Architecture

SAML Federation with IAM

Step 1: Configure SAML Identity Provider in IAM

Step 2: Create IAM Role for Federated Users

Step 3: Map IdP Groups to IAM Roles

OIDC Federation with Cognito

Step 1: Create Cognito User Pool

Step 2: Create Identity Pool

Step 3: Configure IAM Roles for Identity Pool

Directory Service Setup

AWS Managed Microsoft AD

AD Connector

Use Cases

Use Case 1: Enterprise Windows Workloads

Use Case 2: Hybrid Identity with Existing AD

Use Case 3: Mobile App with Social Login

Use Case 4: Workforce SSO to AWS Console

Use Case 5: B2B Partner Access

Best Practices

Directory Service Best Practices

Federation Best Practices

Common Exam Scenarios

Exam Scenarios

Common Pitfalls

Pitfall 1: Choosing Simple AD When You Need Trusts

Pitfall 2: AD Connector Without Redundant Connectivity

Pitfall 3: Confusing Cognito User Pools and Identity Pools

Pitfall 4: Embedding Federation Credentials in Apps

Test Your Knowledge

Related Services

AWS IAM Identity Center

Amazon Cognito

AWS Directory Service

AWS STS

Amazon WorkSpaces

Quick Reference

Directory Service Sizing

Directory Service Sizing

Federation Method Selection

When to Use Each Federation Method

CLI Commands Reference

SAML Attributes for AWS

Further Reading

Related AWS Services
