AWS Security Token Service (STS) & Temporary Credentials

Overview

AWS Security Token Service (STS) is a web service that enables you to request temporary, limited-privilege credentials for IAM users or federated users. These credentials work almost identically to long-term access keys but expire automatically after a specified duration.

Temporary credentials are foundational to AWS security best practices. They eliminate the need to distribute or embed long-term credentials, reduce the blast radius of compromised credentials, and enable advanced features like cross-account access and identity federation.

Core Concept

Temporary credentials consist of three components:

Access Key ID - Identifies the credential
Secret Access Key - Used for signing requests
Session Token - Required for all API calls using temporary credentials

All three must be included when making AWS API calls with temporary credentials.

Exam Tip

STS questions often focus on which API to use for specific scenarios: AssumeRole for cross-account access, AssumeRoleWithSAML for enterprise federation, and AssumeRoleWithWebIdentity for mobile/web apps.

Architecture Diagram

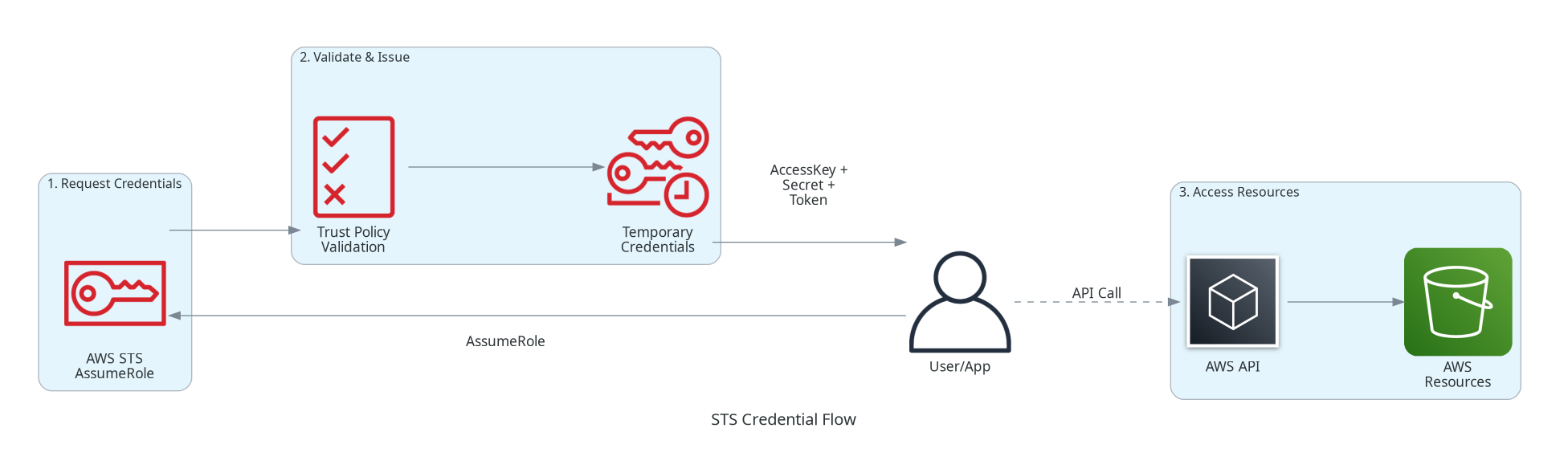

STS Credential Flow — Figure 1: How temporary credentials are requested and used

Key Concepts

How Temporary Credentials Work

Temporary Credentials Lifecycle

Request Phase:

User/application calls STS API (e.g., AssumeRole)
STS validates the request against trust policy
STS returns temporary credentials

Usage Phase:

Application uses credentials for AWS API calls
Credentials include session token in every request
AWS validates credentials on each request

Expiration Phase:

Credentials expire automatically (no revocation needed)
Application must request new credentials before expiration
Cannot extend existing credentials - must request new ones

Credential Duration

Credential Duration Limits

STS API	Default Duration	Minimum	Maximum
AssumeRole	1 hour	15 minutes	12 hours*
AssumeRoleWithSAML	1 hour	15 minutes	12 hours*
AssumeRoleWithWebIdentity	1 hour	15 minutes	12 hours*
GetSessionToken	12 hours	15 minutes	36 hours
GetFederationToken	12 hours	15 minutes	36 hours

*Maximum duration can be set per role (up to 12 hours)

STS API Operations

AssumeRole

Purpose: Assume an IAM role within your account or cross-account

Use Cases:

Cross-account access to resources
Privilege escalation for specific tasks
Temporary elevated permissions

Requirements:

Caller must have sts:AssumeRole permission
Role must have trust policy allowing the caller
Optional: MFA requirement in trust policy

Returns: AccessKeyId, SecretAccessKey, SessionToken, Expiration

AssumeRoleWithSAML

Purpose: Exchange SAML assertion for temporary credentials

Use Cases:

Enterprise single sign-on (SSO)
Active Directory Federation Services (ADFS)
Corporate identity provider integration

Requirements:

Valid SAML 2.0 assertion from trusted IdP
IAM SAML identity provider configured
Role trust policy allowing SAML federation

No IAM User Required: Users don't need IAM accounts

AssumeRoleWithWebIdentity

Purpose: Exchange web identity token for temporary credentials

Use Cases:

Mobile applications
Single-page web applications
Social login (Amazon, Facebook, Google)
OIDC-compatible identity providers

Recommended: Use Amazon Cognito instead for simplified integration

Requirements:

Token from web identity provider
IAM OIDC identity provider configured
Role trust policy allowing the IdP

GetSessionToken

Purpose: Get temporary credentials for an existing IAM user

Use Cases:

Add MFA protection to IAM user credentials
CLI/SDK usage requiring temporary credentials
When user already has long-term credentials

Key Difference: Used by IAM users, not for role assumption

GetFederationToken

Purpose: Get credentials for a federated user (custom federation)

Use Cases:

Custom identity broker implementations
Proxy/broker services that manage federation
Server-side applications managing user access

Note: Caller determines the federated user's permissions (subset of caller's permissions)

How It Works

Cross-Account Access with AssumeRole

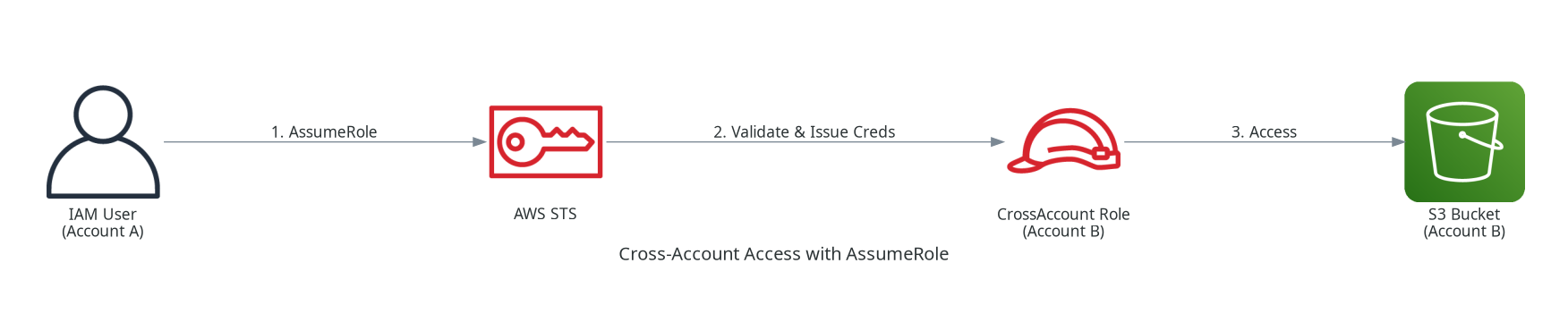

Cross-Account Access with STS — Figure 2: Using STS AssumeRole for cross-account access

Step 1: Create Role in Target Account

JSONTrust Policy (Account B - Target)

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::111111111111:root"
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "Bool": {
          "aws:MultiFactorAuthPresent": "true"
        }
      }
    }
  ]
}

Step 2: Grant AssumeRole Permission in Source Account

JSONIAM Policy (Account A - Source)

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": "sts:AssumeRole",
      "Resource": "arn:aws:iam::222222222222:role/CrossAccountRole"
    }
  ]
}

Step 3: Assume the Role

SHAssuming a Role (CLI)

# Assume the role
aws sts assume-role \
  --role-arn arn:aws:iam::222222222222:role/CrossAccountRole \
  --role-session-name MySession \
  --duration-seconds 3600

# Response includes temporary credentials:
# {
#   "Credentials": {
#     "AccessKeyId": "ASIA...",
#     "SecretAccessKey": "...",
#     "SessionToken": "...",
#     "Expiration": "2024-01-15T13:00:00Z"
#   },
#   "AssumedRoleUser": {
#     "AssumedRoleId": "AROA...:MySession",
#     "Arn": "arn:aws:sts::222222222222:assumed-role/CrossAccountRole/MySession"
#   }
# }

# Use the credentials
export AWS_ACCESS_KEY_ID=ASIA...
export AWS_SECRET_ACCESS_KEY=...
export AWS_SESSION_TOKEN=...

# Now commands run as the assumed role
aws s3 ls s3://bucket-in-account-b/

Using AssumeRole with MFA

SHAssuming a Role with MFA

aws sts assume-role \
  --role-arn arn:aws:iam::222222222222:role/SensitiveRole \
  --role-session-name AdminSession \
  --serial-number arn:aws:iam::111111111111:mfa/username \
  --token-code 123456 \
  --duration-seconds 3600

Federation with SAML

SHAssumeRoleWithSAML

aws sts assume-role-with-saml \
  --role-arn arn:aws:iam::123456789012:role/SAMLRole \
  --principal-arn arn:aws:iam::123456789012:saml-provider/ExampleProvider \
  --saml-assertion file://saml-assertion.txt \
  --duration-seconds 3600

Use Cases

Use Case 1: EC2 Instance Role

Scenario: Application on EC2 needs to access S3 and DynamoDB.

Solution: Attach an IAM role to the EC2 instance.

How EC2 Instance Roles Work

Instance metadata service provides temporary credentials
AWS SDKs automatically retrieve and refresh credentials
Credentials rotate automatically (typically every 6 hours)
No credentials stored on the instance

Endpoint: http://169.254.169.254/latest/meta-data/iam/security-credentials/role-name

Use Case 2: Cross-Account S3 Access

Scenario: Development team in Account A needs read access to production logs in Account B.

Solution:

Account B creates role with S3 read permissions and trust policy for Account A
Account A grants developers permission to assume the role
Developers assume role to access logs, credentials expire after session

Use Case 3: CI/CD Pipeline

Scenario: Jenkins needs to deploy to AWS without long-term credentials.

Solution:

Create IAM role with deployment permissions
Configure Jenkins to assume role using OIDC federation or instance role
Each deployment gets fresh, short-lived credentials

Use Case 4: Mobile App with Cognito

Scenario: Mobile app needs user-specific access to S3 buckets.

Solution:

User authenticates with Amazon Cognito
Cognito exchanges identity token for temporary AWS credentials
App uses credentials scoped to that user's data

Best Practices

STS Best Practices

Use Shortest Practical Duration - Minimize exposure window
Always Require MFA for Sensitive Roles - Add condition to trust policy
Use External ID for Third-Party Access - Prevent confused deputy problem
Log All AssumeRole Calls - CloudTrail captures all STS API calls
Use Regional Endpoints - Reduce latency and improve availability
Implement Credential Refresh - Handle expiration gracefully in applications

External ID for Third-Party Access

JSONTrust Policy with External ID

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::THIRD-PARTY-ACCOUNT:root"
      },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": {
          "sts:ExternalId": "unique-external-id-12345"
        }
      }
    }
  ]
}

Common Exam Scenarios

STS Exam Scenarios

Scenario	STS API	Why
User in Account A needs access to S3 in Account B	AssumeRole	Cross-account access via IAM role
Enterprise users login via Active Directory	AssumeRoleWithSAML	SAML 2.0 federation with ADFS
Mobile app users authenticate with Google	AssumeRoleWithWebIdentity (or Cognito)	OIDC federation for social login
IAM user needs MFA-protected temporary credentials	GetSessionToken	Adds MFA to existing IAM user
Application on EC2 needs DynamoDB access	Automatic (Instance Role)	EC2 instance role provides credentials automatically
Third-party SaaS needs access to your S3	AssumeRole with External ID	Prevents confused deputy problem
Lambda function needs cross-account access	AssumeRole (in code)	Lambda execution role + assume target role

Common Pitfalls

Pitfall 1: Forgetting the Session Token

Mistake: Using only AccessKeyId and SecretAccessKey from temporary credentials.

Why it fails:

Temporary credentials REQUIRE the session token
API calls will fail with "InvalidAccessKeyId" error
Easy to miss when copying credentials manually

Correct Approach:

Always include all three: AccessKeyId, SecretAccessKey, SessionToken
Use AWS SDKs that handle this automatically
Check environment variables include AWS_SESSION_TOKEN

Pitfall 2: Not Handling Credential Expiration

Mistake: Assuming credentials last forever or not refreshing them.

Why it fails:

Temporary credentials expire (default 1 hour)
Long-running applications will suddenly fail
No warning before expiration

Correct Approach:

Implement credential refresh logic
Use AWS SDKs with built-in refresh (instance roles, credential providers)
Request new credentials before expiration

Pitfall 3: Overly Permissive Trust Policies

Mistake: Using "Principal": "*" in role trust policies.

Why it's dangerous:

Any AWS account could potentially assume the role
No external ID means any caller can assume
Defeats the purpose of role-based access

Correct Approach:

Specify exact principal ARNs
Require External ID for third-party access
Require MFA for sensitive roles
Use conditions to further restrict

Pitfall 4: Confused Deputy Problem

Mistake: Not using External ID when granting cross-account access to third parties.

Why it matters:

Malicious actor could trick third-party service into accessing your resources
Third-party service might accidentally access wrong customer's data
Common security vulnerability in multi-tenant systems

Correct Approach:

Always use External ID for third-party access
Generate unique, unpredictable External IDs
Validate External ID in trust policy

Test Your Knowledge

Which STS API should be used for cross-account access between AWS accounts?

AGetSessionToken

BGetFederationToken

CAssumeRole

DAssumeRoleWithWebIdentity

What components make up temporary security credentials?

AAccess Key ID and Secret Access Key only

BAccess Key ID, Secret Access Key, and Session Token

CUsername and Password

DAccess Key ID and Session Token only

An enterprise wants to allow employees to access AWS using their Active Directory credentials. Which STS API should they use?

AAssumeRole

BAssumeRoleWithWebIdentity

CAssumeRoleWithSAML

DGetFederationToken

What is the purpose of External ID in a role trust policy?

ATo identify the AWS region

BTo prevent the confused deputy problem

CTo encrypt the session token

DTo extend credential duration

Security

AWS IAM Roles

Define permissions and trust relationships for STS to issue credentials

Security

Amazon Cognito

Simplified identity federation for mobile and web applications

Security

AWS IAM Identity Center

Centralized SSO using STS under the hood for multiple AWS accounts

Management

AWS CloudTrail

Logs all STS API calls for security auditing and compliance

Quick Reference

STS API Comparison

STS API Quick Reference

API	Use Case	Requires IAM User?
AssumeRole	Cross-account access, role switching	No (caller needs permission)
AssumeRoleWithSAML	Enterprise SSO via SAML	No
AssumeRoleWithWebIdentity	Mobile/web app social login	No
GetSessionToken	MFA for IAM user credentials	Yes
GetFederationToken	Custom identity broker	Yes

STS Endpoints

TEXTSTS Endpoint URLs

Global:     https://sts.amazonaws.com
US East:    https://sts.us-east-1.amazonaws.com
EU West:    https://sts.eu-west-1.amazonaws.com
AP Tokyo:   https://sts.ap-northeast-1.amazonaws.com

Regional endpoints reduce latency - credentials work globally

CLI Commands

SHCommon STS CLI Commands

# Assume a role
aws sts assume-role --role-arn <role-arn> --role-session-name <name>

# Assume role with MFA
aws sts assume-role --role-arn <role-arn> --role-session-name <name> \
  --serial-number <mfa-arn> --token-code <code>

# Get session token (with MFA)
aws sts get-session-token --serial-number <mfa-arn> --token-code <code>

# Get caller identity
aws sts get-caller-identity

# Decode authorization message
aws sts decode-authorization-message --encoded-message <message>

Key Concepts

AWS Security Token Service (STS) & Temporary Credentials

Overview

Core Concept

Architecture Diagram

Key Concepts

How Temporary Credentials Work

Temporary Credentials Lifecycle

Credential Duration

Credential Duration Limits

STS API Operations

AssumeRole

AssumeRoleWithSAML

AssumeRoleWithWebIdentity

GetSessionToken

GetFederationToken

How It Works

Cross-Account Access with AssumeRole

Step 1: Create Role in Target Account

Step 2: Grant AssumeRole Permission in Source Account

Step 3: Assume the Role

Using AssumeRole with MFA

Federation with SAML

Use Cases

Use Case 1: EC2 Instance Role

How EC2 Instance Roles Work

Use Case 2: Cross-Account S3 Access

Use Case 3: CI/CD Pipeline

Use Case 4: Mobile App with Cognito

Best Practices

STS Best Practices

External ID for Third-Party Access

Common Exam Scenarios

STS Exam Scenarios

Common Pitfalls

Pitfall 1: Forgetting the Session Token

Pitfall 2: Not Handling Credential Expiration

Pitfall 3: Overly Permissive Trust Policies

Pitfall 4: Confused Deputy Problem

Test Your Knowledge

Related Services

AWS IAM Roles

Amazon Cognito

AWS IAM Identity Center

AWS CloudTrail

Quick Reference

STS API Comparison

STS API Quick Reference

STS Endpoints

CLI Commands

Further Reading

Related AWS Services
