IAM Fundamentals: Users, Groups, Roles, and Policies

Overview

AWS Identity and Access Management (IAM) is the foundational service for controlling access to AWS resources. It enables you to manage authentication (who can sign in) and authorization (what permissions they have) for your AWS account.

IAM is a global service - it's not region-specific. When you create an IAM user or role, it's available across all AWS regions. Understanding IAM is critical for the SAA-C03 exam, as security accounts for 30% of the exam content, and IAM questions appear in nearly every domain.

Key Principle

IAM follows the principle of least privilege - grant only the permissions required to perform a task, nothing more. This is the most important security concept you need to understand for the exam.

Exam Tip

IAM questions appear in nearly every exam domain - expect 8-10 questions on IAM alone. Focus on understanding when to use roles vs users, and how policy evaluation works.

Architecture Diagram

The following diagram illustrates the core components of AWS IAM and how they interact:

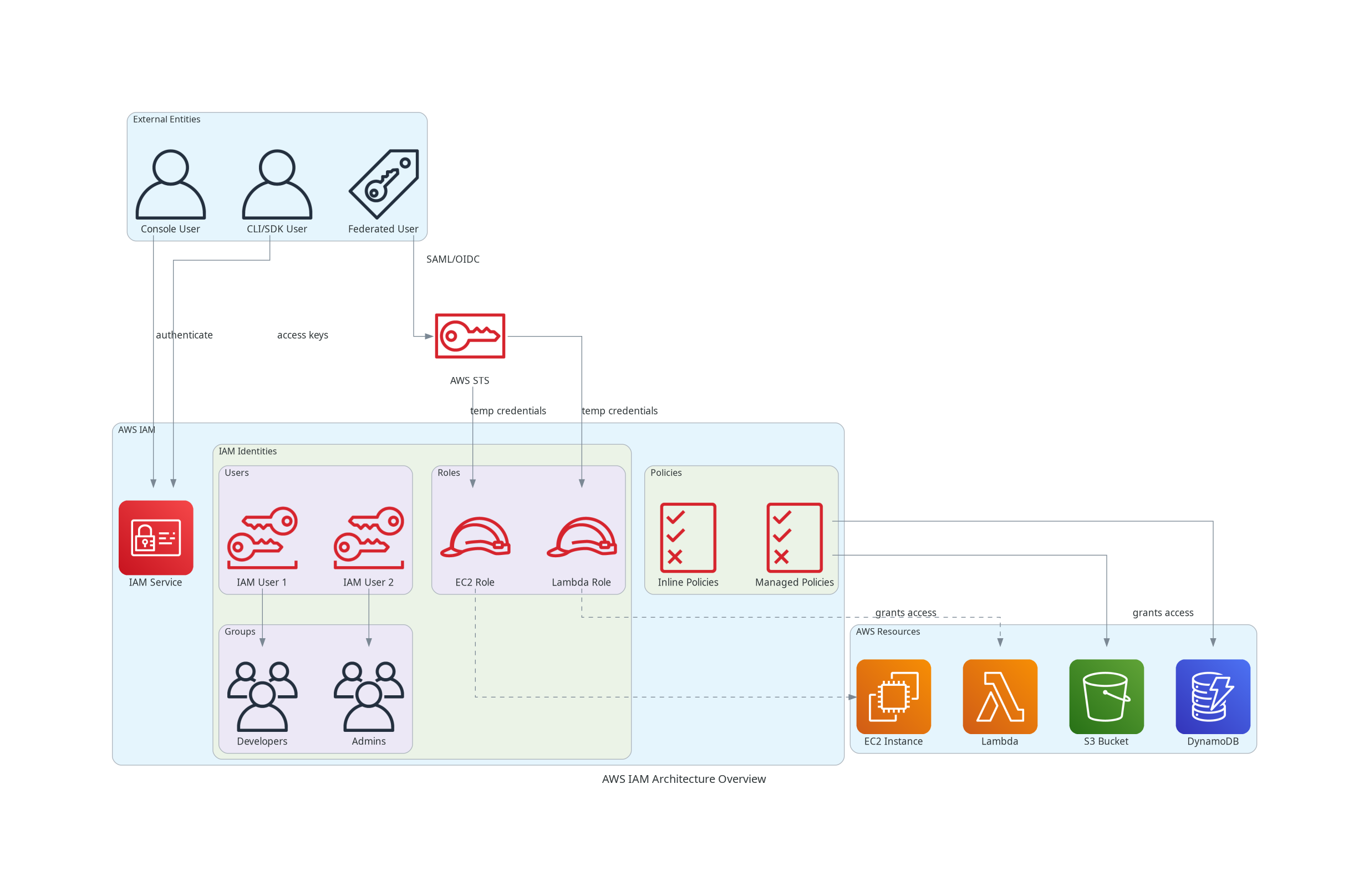

IAM Architecture Overview — Figure 1: IAM Components - Users, Groups, Roles, Policies, and their relationships to AWS resources

Key Concepts

IAM Users

An IAM user represents a person or application that interacts with AWS. Each user has a unique identity within your AWS account.

User Credentials:

Console password - For AWS Management Console access
Access keys - For programmatic access (CLI, SDK, API)
- Consists of Access Key ID + Secret Access Key
- Maximum of 2 access keys per user

Important Characteristics:

Users are created with no permissions by default
Each user can belong to multiple groups (up to 10)
Permissions can be assigned directly or through groups
Users can have both console and programmatic access
ARN format: arn:aws:iam::account-id:user/username

IAM Groups

An IAM group is a collection of IAM users. Groups simplify permission management by allowing you to assign policies to multiple users at once.

Key Characteristics:

Groups contain users only - you cannot nest groups within groups
A user can belong to multiple groups (up to 10)
Groups don't have credentials - they're purely for organizing users
When a policy is attached to a group, all members inherit those permissions
Groups do NOT have their own identity - they cannot be referenced as a principal

IAM Roles

An IAM role is an identity with specific permissions that can be assumed by trusted entities. Unlike users, roles don't have permanent credentials - they provide temporary security credentials.

Who Can Assume Roles:

IAM users (same or different account)
AWS services (EC2, Lambda, etc.)
External users via federation (SAML, OIDC)
Applications

Role Components:

Trust Policy - Defines who can assume the role
Permissions Policy - Defines what the role can do

Common IAM Role Use Cases

Use Case	Description	Example
EC2 Instance Role	Allow EC2 instances to access other AWS services	EC2 reading from S3 bucket
Cross-Account Access	Allow users from Account B to access Account A resources	Shared S3 bucket access
Federation	Allow external identity providers to grant AWS access	Corporate AD users accessing AWS
Service-Linked Role	Predefined role for specific AWS services	Auto Scaling managing EC2

JSONExample Trust Policy (EC2)

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "ec2.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

IAM Policies

Policies are JSON documents that define permissions. They specify what actions are allowed or denied on which resources.

Policy Types:

Identity-Based - Attached to users, groups, or roles
Resource-Based - Attached directly to resources (S3, SQS, etc.)
Permissions Boundary - Sets maximum permissions for users/roles
Service Control Policy (SCP) - Organization-level guardrails
Session Policy - Limits permissions for assumed role sessions

IAM Policy Types Comparison

Type	Attached To	Use Case
Identity-Based	Users, Groups, Roles	Define what an identity can do
Resource-Based	Resources (S3, SQS)	Define who can access the resource
Permissions Boundary	Users, Roles	Set maximum permissions
Service Control Policy	AWS Organizations	Set guardrails for accounts
Session Policy	Temporary sessions	Limit assumed role permissions

How It Works

Policy Document Structure

Every IAM policy follows this JSON structure:

JSONIAM Policy Structure

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AllowS3ReadAccess",
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:ListBucket"
      ],
      "Resource": [
        "arn:aws:s3:::my-bucket",
        "arn:aws:s3:::my-bucket/*"
      ],
      "Condition": {
        "IpAddress": {
          "aws:SourceIp": "192.168.1.0/24"
        }
      }
    }
  ]
}

Policy Elements Explained

Element	Required	Description
Version	Yes	Always use 2012-10-17
Statement	Yes	Array of permission statements
Sid	No	Statement identifier (for documentation)
Effect	Yes	Allow or Deny
Principal	Conditional	Who the policy applies to (resource-based only)
Action	Yes	List of actions (e.g., s3:GetObject)
Resource	Yes	ARN of resources the actions apply to
Condition	No	Conditions that must be met

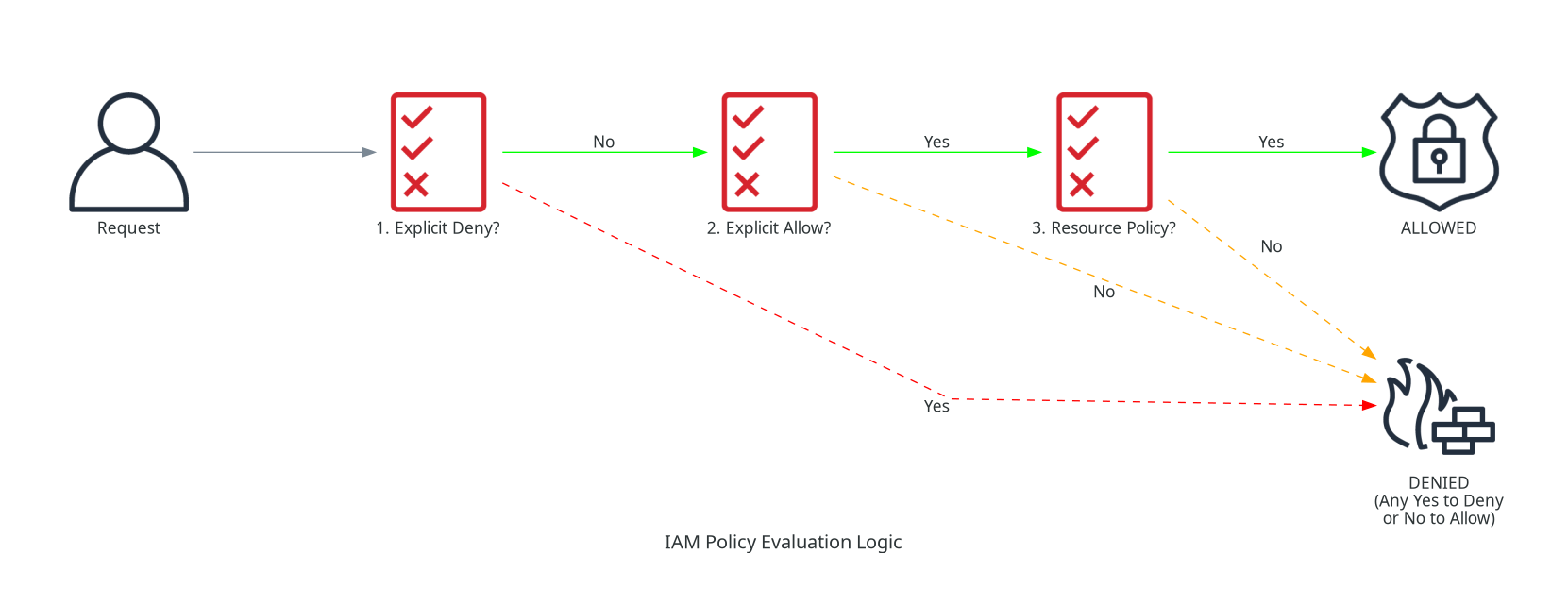

Policy Evaluation Logic

When a request is made, AWS evaluates all applicable policies:

Policy Evaluation Rules

Explicit Deny always wins over any Allow
Implicit Deny is the default when no policy matches
Policies are evaluated using logical OR (any Allow grants access)
Within Organizations: SCPs further restrict effective permissions

Policy Evaluation Flow Diagram

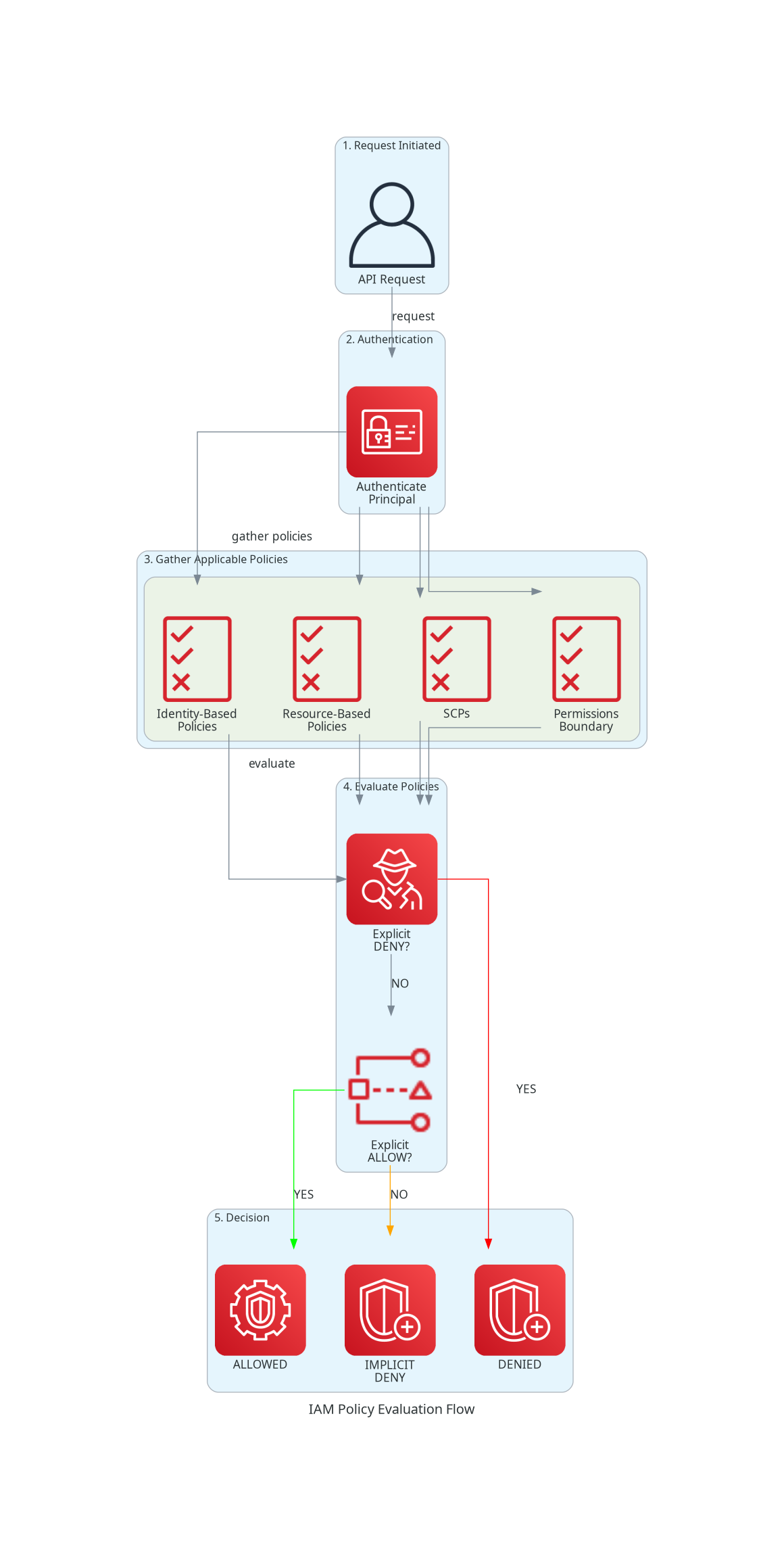

IAM Policy Evaluation Flow — Figure 3: Complete policy evaluation flow showing how AWS evaluates policies when a request is made

Managed vs. Inline Policies

Managed vs Inline Policies

Aspect	Managed Policies	Inline Policies
Reusability	Can attach to multiple identities	One-to-one relationship
Maintenance	Update once, applies everywhere	Must update each identity
Versioning	Supports up to 5 versions	No versioning
Deletion	Exists independently	Deleted with identity
AWS Provided	Yes (AWS managed policies)	No
Recommended	Yes (preferred approach)	Only for strict 1:1 relationships

Use Cases

Use Case 1: Development Team Access

Scenario: A team of 5 developers needs read/write access to a specific S3 bucket and read-only access to DynamoDB.

Solution:

Create an IAM group called Developers
Attach two managed policies to the group
Add all 5 developers to the group

JSONDeveloper Team Policy

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:PutObject",
        "s3:DeleteObject",
        "s3:ListBucket"
      ],
      "Resource": [
        "arn:aws:s3:::dev-bucket",
        "arn:aws:s3:::dev-bucket/*"
      ]
    },
    {
      "Effect": "Allow",
      "Action": [
        "dynamodb:GetItem",
        "dynamodb:Query",
        "dynamodb:Scan"
      ],
      "Resource": "arn:aws:dynamodb:*:*:table/dev-table"
    }
  ]
}

Use Case 2: EC2 Instance Accessing S3

Scenario: An EC2 instance running an application needs to upload files to S3.

Solution:

Create an IAM role for EC2
Attach a policy granting S3 write access
Attach the role to the EC2 instance (Instance Profile)

Why Role over Access Keys?

No credentials stored on the instance
Credentials are automatically rotated by AWS
Permissions can be changed without modifying the application
Much more secure and is the recommended approach

Use Case 3: Cross-Account Access

Scenario: Account B users need to access an S3 bucket in Account A.

Solution:

In Account A: Create a role with trust policy allowing Account B
In Account A: Attach S3 access policy to the role
In Account B: Grant users permission to assume the role

Best Practices

IAM Best Practices

Follow Least Privilege - Start with minimum permissions, add as needed
Use Roles Instead of Access Keys - Roles provide temporary, auto-rotating credentials
Enable MFA for Privileged Users - Require MFA for console access and sensitive operations
Use Groups for Permission Management - Never attach policies directly to users
Regularly Review and Audit - Use IAM Credential Report and Access Advisor
Use AWS Managed Policies When Possible - Automatically updated by AWS

Common Exam Scenarios

Exam Scenarios and Solutions

Scenario	Solution	Why
Application on EC2 needs DynamoDB access	Create IAM role, attach to EC2	Roles provide temporary credentials, more secure than access keys
User needs admin access only during emergencies	Create role with admin permissions, user assumes role when needed	Separation of duties, auditable
External contractors need temporary AWS access	Use IAM roles with federation or IAM Identity Center	No permanent IAM users for temporary staff
Prevent accidental S3 bucket deletion	Use SCP to deny s3:DeleteBucket at organization level	SCPs provide guardrails across accounts
Application needs to call AWS APIs	Use IAM role (if on AWS) or IAM user with access keys (if external)	Roles preferred; access keys only when necessary

Common Pitfalls

Pitfall 1: Using Root Account for Daily Tasks

Mistake: Using the root account email/password for regular operations.

Why it's dangerous:

Root has unlimited access that cannot be restricted
Cannot be restricted by IAM policies
No audit trail for specific actions

Correct Approach:

Create IAM users for all operations
Enable MFA on root account
Use root only for account-level tasks (billing, closing account)

Pitfall 2: Embedding Access Keys in Code

Mistake: Hardcoding access keys in application code or config files.

Why it's dangerous:

Keys can be exposed in version control
Difficult to rotate
No automatic expiration

Correct Approach:

Use IAM roles for AWS resources
Use environment variables or AWS Secrets Manager
Rotate keys regularly if they must be used

Pitfall 3: Overly Permissive Policies

Mistake: Using "Action": "*" and "Resource": "*" for convenience.

Why it's dangerous:

Violates least privilege principle
Increases blast radius of compromised credentials
Makes compliance and auditing difficult

Correct Approach:

Specify exact actions needed
Limit to specific resources using ARNs
Use conditions to further restrict access

Test Your Knowledge

What is the maximum number of access keys an IAM user can have?

DUnlimited

Which statement about IAM groups is TRUE?

AGroups can contain other groups (nesting)

BGroups can be used as principals in policies

CA user can belong to a maximum of 10 groups

DGroups have their own credentials

An application running on EC2 needs to access S3. What is the BEST approach?

ACreate an IAM user and embed access keys in the application

BCreate an IAM role and attach it to the EC2 instance

CUse the root account credentials

DShare access keys via environment variables

Security

AWS STS

Security Token Service - Issues temporary credentials for assumed roles

Management

AWS Organizations

Manage multiple AWS accounts and apply SCPs to limit IAM permissions at account level

Security

IAM Identity Center

Centralized access management across multiple AWS accounts (formerly AWS SSO)

Management

AWS CloudTrail

Logs all IAM API calls for auditing and compliance

Security

IAM Access Analyzer

Identifies resources shared externally and validates policy grammar

Quick Reference

ARN Format

TEXTIAM ARN Formats

arn:aws:iam::account-id:user/user-name
arn:aws:iam::account-id:group/group-name
arn:aws:iam::account-id:role/role-name
arn:aws:iam::account-id:policy/policy-name

Common IAM Actions

Action	Description
iam:CreateUser	Create an IAM user
iam:AttachUserPolicy	Attach managed policy to user
iam:CreateRole	Create an IAM role
sts:AssumeRole	Assume an IAM role
iam:PassRole	Pass a role to a service

IAM Limits

IAM Service Limits

Resource	Default Limit
Users per account	5,000
Groups per account	300
Roles per account	1,000
Managed policies per account	1,500
Groups per user	10
Access keys per user	2

Key Concepts

IAM Fundamentals: Users, Groups, Roles, and Policies

Overview

Key Principle

Architecture Diagram

Key Concepts

IAM Users

IAM Users

IAM Groups

IAM Groups

IAM Roles

IAM Roles

Common IAM Role Use Cases

IAM Policies

IAM Policies

IAM Policy Types Comparison

How It Works

Policy Document Structure

Policy Elements Explained

Policy Evaluation Logic

Policy Evaluation Rules

Policy Evaluation Flow Diagram

Managed vs. Inline Policies

Managed vs Inline Policies

Use Cases

Use Case 1: Development Team Access

Use Case 2: EC2 Instance Accessing S3

Why Role over Access Keys?

Use Case 3: Cross-Account Access

Best Practices

IAM Best Practices

Common Exam Scenarios

Exam Scenarios and Solutions

Common Pitfalls

Pitfall 1: Using Root Account for Daily Tasks

Pitfall 2: Embedding Access Keys in Code

Pitfall 3: Overly Permissive Policies

Test Your Knowledge

Related Services

AWS STS

AWS Organizations

IAM Identity Center

AWS CloudTrail

IAM Access Analyzer

Quick Reference

ARN Format

Common IAM Actions

Common IAM Actions

IAM Limits

IAM Service Limits

Further Reading

Related AWS Services
