Amazon FSx (Windows, Lustre, NetApp)

Overview

Amazon FSx provides fully managed file systems built on popular open-source and commercial file systems. Each FSx variant is optimized for specific workloads, providing native compatibility with existing applications and tools. Understanding when to use each FSx type is critical for the SAA-C03 exam.

FSx for Windows File Server

FSx for Windows File Server provides fully managed, highly reliable Microsoft Windows file servers powered by Windows Server. It supports the SMB protocol and integrates with Microsoft Active Directory.

Deployment Options

Performance Characteristics

Integration with Active Directory

┌─────────────────────────────────────────────────────────────────┐
│                    Active Directory Integration                  │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   ┌──────────────────┐         ┌──────────────────────────┐    │
│   │  AWS Managed AD  │    OR   │  Self-Managed AD         │    │
│   │  (Recommended)   │         │  (On-premises/EC2)       │    │
│   └────────┬─────────┘         └─────────────┬────────────┘    │
│            │                                  │                  │
│            └──────────────┬───────────────────┘                 │
│                           ▼                                      │
│              ┌──────────────────────────┐                       │
│              │  FSx for Windows         │                       │
│              │  File Server             │                       │
│              └──────────────────────────┘                       │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

FSx for Lustre

FSx for Lustre provides a high-performance parallel file system designed for compute-intensive workloads. It's ideal for machine learning, high-performance computing (HPC), video processing, and financial modeling.

Deployment Types

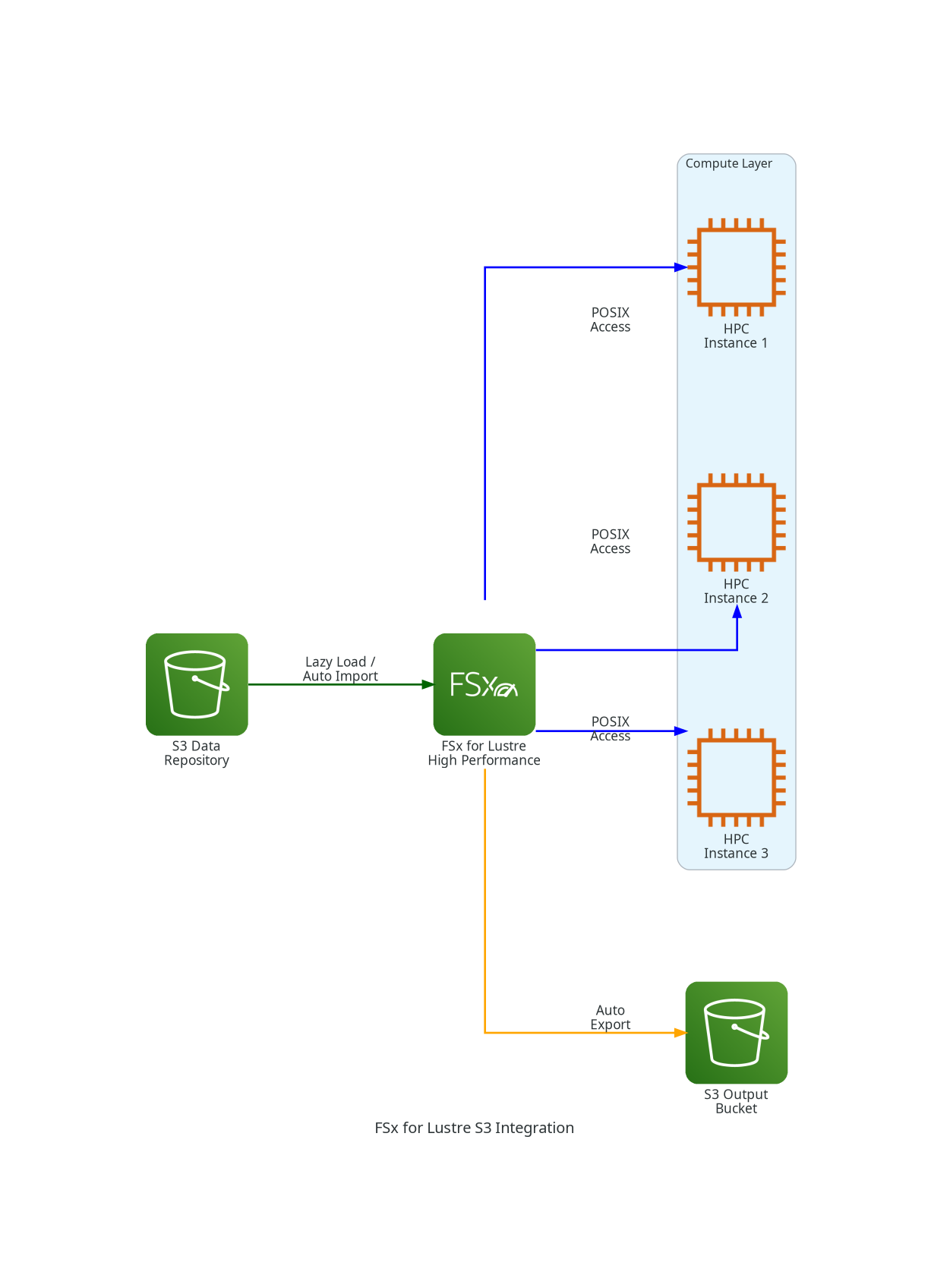

S3 Integration

FSx for Lustre can be linked to an S3 bucket as a data repository, enabling seamless access to S3 objects as files:

Data Repository Association Features:

• Lazy Loading: Files are loaded from S3 on first access
• Batch Import: Bulk import files from S3 to FSx
• Automatic Export: Changes automatically written back to S3
• S3 Event Notifications: Trigger import when S3 objects change

```bash
aws fsx create-file-system \
    --file-system-type LUSTRE \
    --storage-capacity 1200 \
    --subnet-ids subnet-12345678 \
    --lustre-configuration '{
        "DeploymentType": "PERSISTENT_2",
        "DataRepositoryConfiguration": {
            "ImportPath": "s3://my-bucket/dataset",
            "ExportPath": "s3://my-bucket/output",
            "AutoImportPolicy": "NEW_CHANGED"
        },
        "PerUnitStorageThroughput": 125
    }'
```

FSx for NetApp ONTAP

FSx for NetApp ONTAP provides fully managed shared storage built on NetApp's popular ONTAP file system. It supports NFS, SMB, and iSCSI protocols, making it ideal for multi-protocol environments.

Architecture Components

Storage Efficiency

FSx for NetApp ONTAP offers industry-leading storage efficiency:

Data Tiering

FSx for NetApp ONTAP automatically tiers infrequently accessed data to lower-cost capacity pool storage:

┌─────────────────────────────────────────────────────────────────┐
│                    FSx for NetApp ONTAP Tiering                  │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│   ┌────────────────────────────────────────────────────────┐    │
│   │              PRIMARY SSD STORAGE                        │    │
│   │   • Hot data (frequently accessed)                      │    │
│   │   • Low latency, high IOPS                             │    │
│   └────────────────────────┬───────────────────────────────┘    │
│                            │ Automatic                          │
│                            ▼ Tiering                            │
│   ┌────────────────────────────────────────────────────────┐    │
│   │              CAPACITY POOL STORAGE                      │    │
│   │   • Cold data (infrequently accessed)                   │    │
│   │   • Cost-optimized, higher latency                      │    │
│   └────────────────────────────────────────────────────────┘    │
│                                                                  │
│   Tiering Policies: None | Snapshot-only | Auto | All           │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

FSx for OpenZFS

FSx for OpenZFS provides fully managed file storage built on the OpenZFS file system, optimized for Linux workloads requiring fast NFS performance.

Performance Tiers

Key Use Cases

• Lift-and-shift Linux applications: Move existing ZFS-based workloads
• DevOps and CI/CD: Fast cloning for development environments
• Media and entertainment: Video editing and rendering
• Web serving: High-performance content delivery

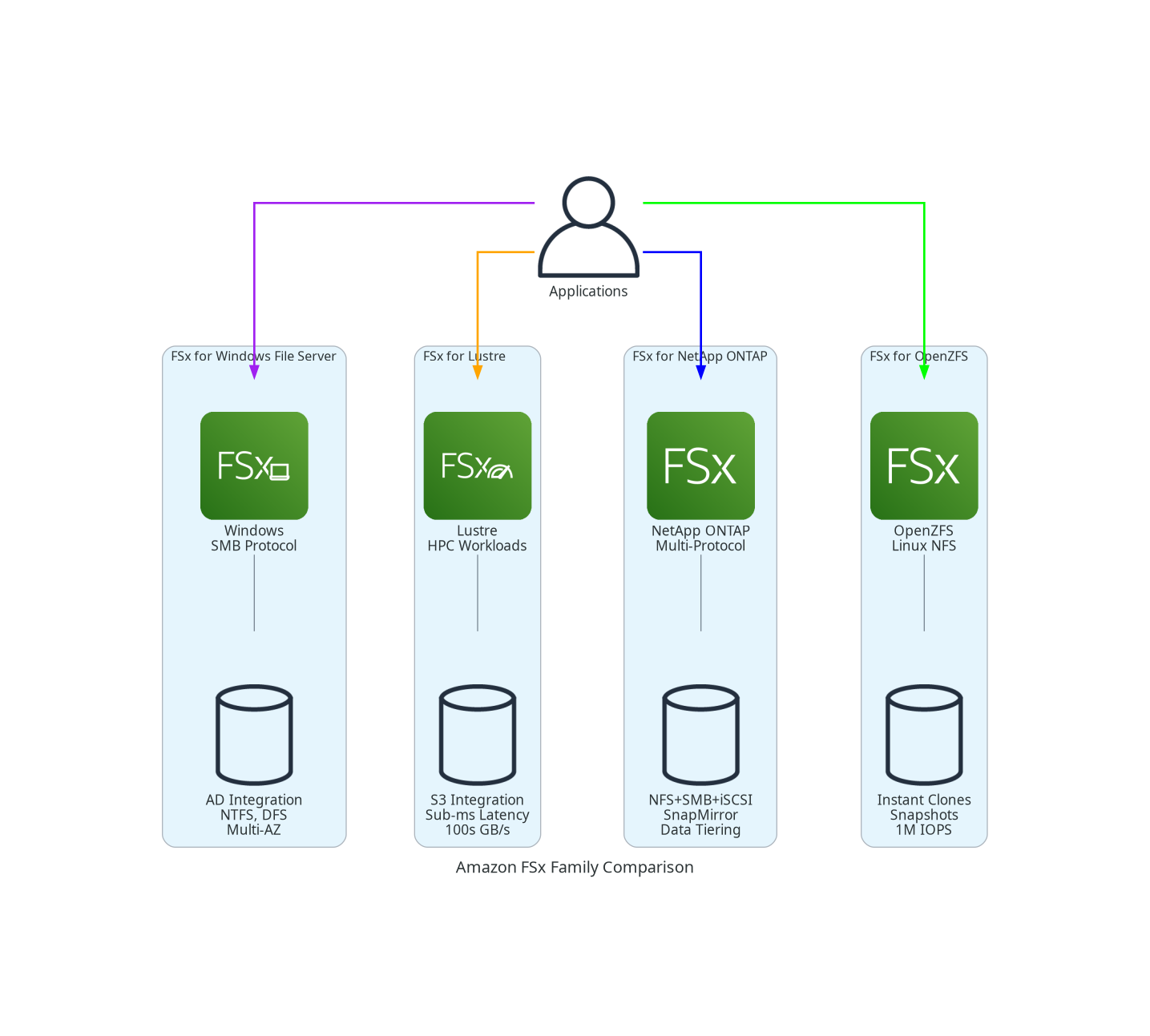

FSx Comparison

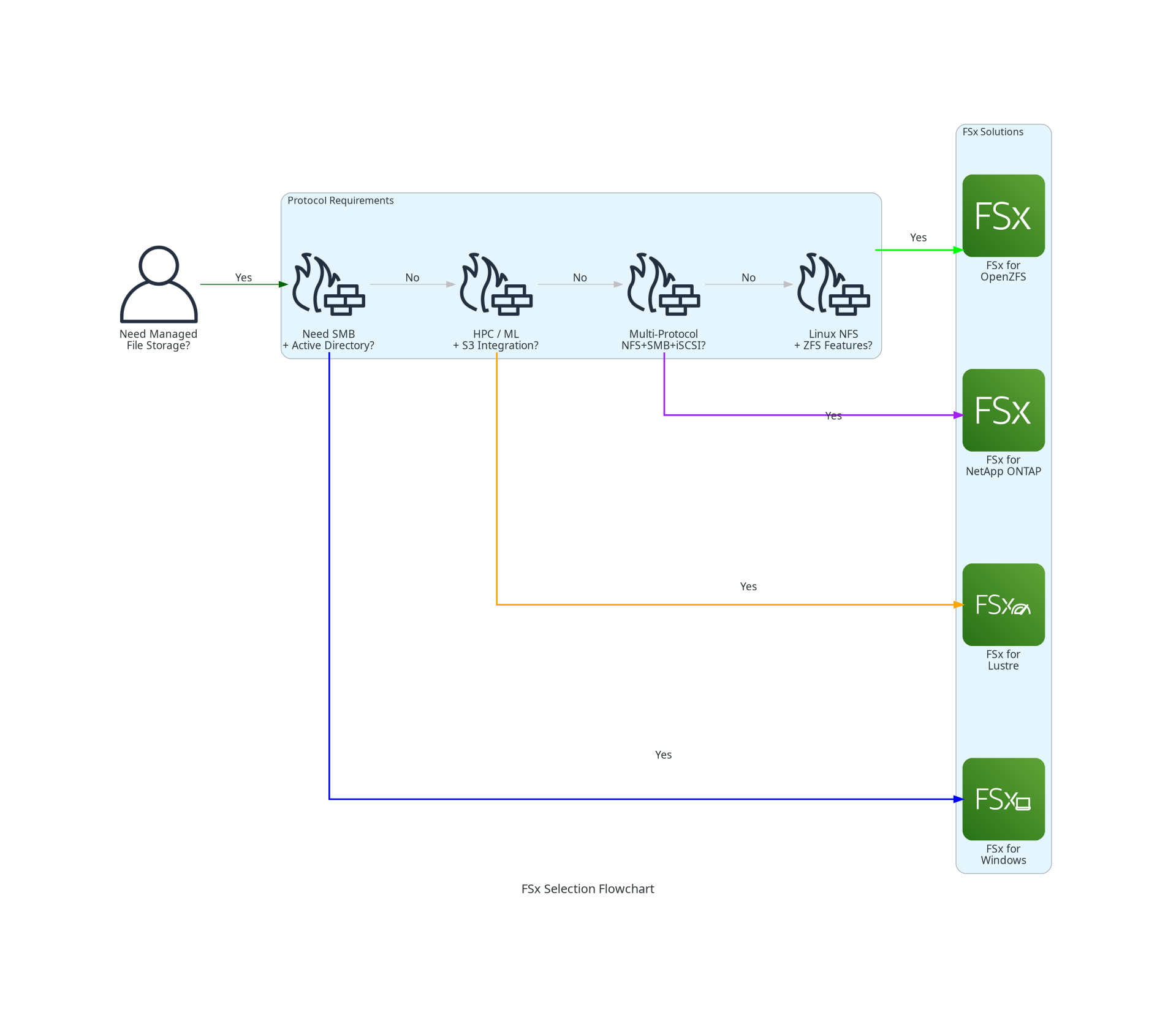

Decision Flowchart

Common Exam Scenarios

Integration Patterns

FSx with Amazon EC2

All FSx file systems can be mounted on EC2 instances:

FSx with Amazon EKS/ECS

```yaml
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: fsx-lustre-sc
provisioner: fsx.csi.aws.com
parameters:
  subnetId: subnet-12345678
  securityGroupIds: sg-12345678
  deploymentType: PERSISTENT_2
  perUnitStorageThroughput: "200"
  dataRepositoryPath: s3://my-bucket/data
```

FSx with AWS DataSync

Use AWS DataSync to migrate data to any FSx file system:

On-Premises Storage → DataSync Agent → AWS DataSync → FSx

Best Practices

Related Services

Knowledge Check

Summary

Amazon FSx provides purpose-built managed file systems for different workloads:

Understanding the unique capabilities and use cases for each FSx variant is essential for selecting the right storage solution on the exam.
