VPC Endpoints (Gateway & Interface)

Overview

VPC Endpoints enable you to privately connect your VPC to supported AWS services and VPC endpoint services without requiring an internet gateway, NAT device, VPN connection, or AWS Direct Connect connection. Traffic between your VPC and the service does not leave the Amazon network.

Understanding VPC endpoints is critical for the SAA-C03 exam because they are a fundamental building block for secure, private architectures. You must know when to use Gateway endpoints vs Interface endpoints, their pricing implications, and how they integrate with other AWS services.

AWS PrivateLink is the underlying technology that powers Interface endpoints, Gateway Load Balancer endpoints, and Resource endpoints. It provides private connectivity to services as if they were running in your own VPC, eliminating exposure to the public internet.

For the exam, focus on the differences between endpoint types, when to use each, and the security and cost benefits they provide.

Key Concepts

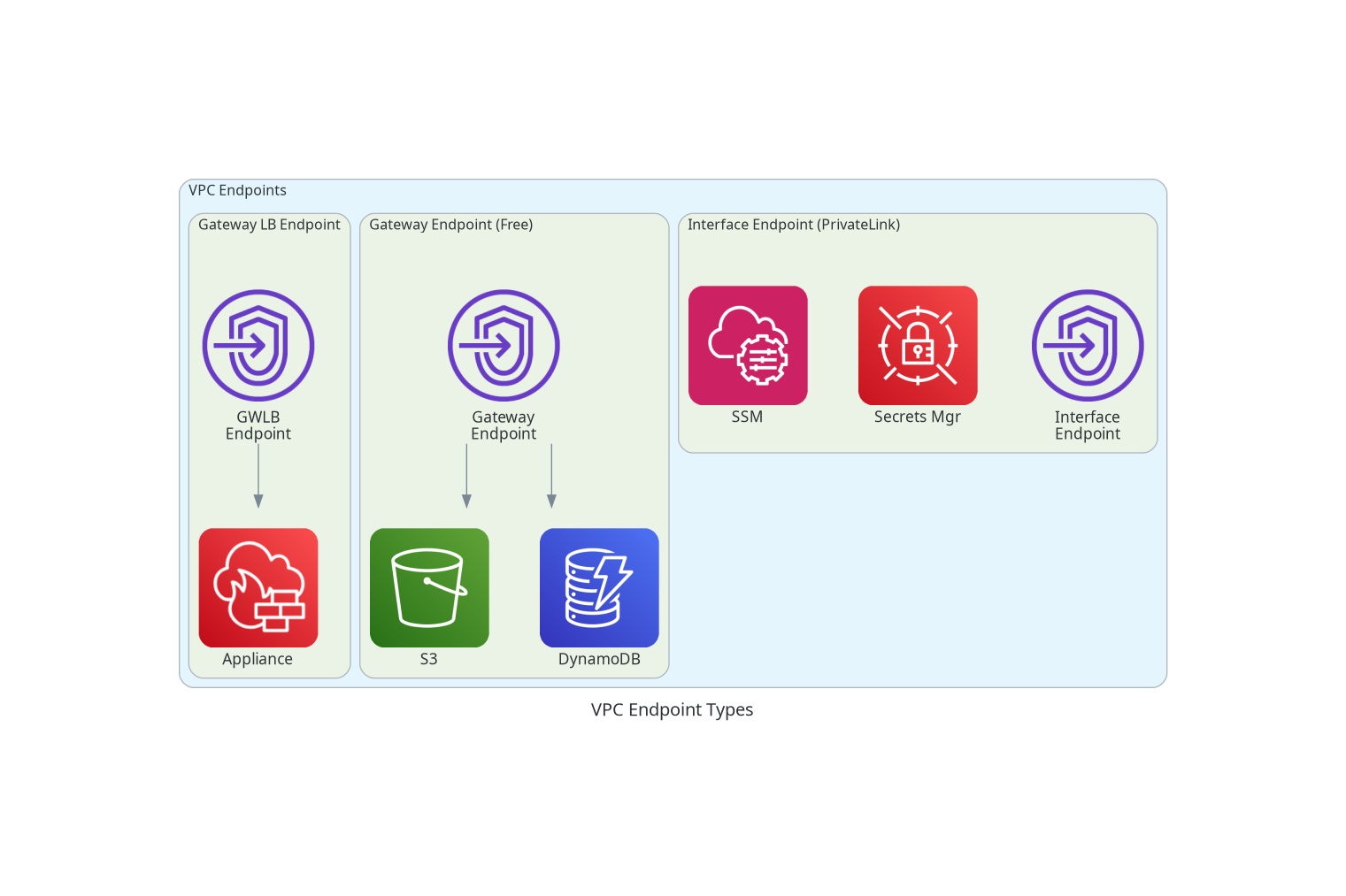

Types of VPC Endpoints

AWS offers five types of VPC endpoints:

Gateway Endpoints

Gateway endpoints provide reliable connectivity to Amazon S3 and Amazon DynamoDB without requiring an internet gateway or NAT device.

Key Characteristics:

• FREE - No hourly charges, no data processing charges
• Works by adding entries to route tables
• Uses prefix lists (managed by AWS) as route destinations
• Does NOT use AWS PrivateLink
• Cannot be accessed from on-premises or peered VPCs in other regions

Destination              Target
10.0.0.0/16             local
pl-63a5400a (S3)        vpce-1234567890abcdef0
0.0.0.0/0               nat-xxx (or igw-xxx)

Interface Endpoints (AWS PrivateLink)

Interface endpoints create an Elastic Network Interface (ENI) in your subnet with a private IP address. This ENI serves as an entry point for traffic destined to the supported service.

Key Characteristics:

• Uses AWS PrivateLink technology
• Creates ENI in each specified subnet
• Supports security groups
• Provides private DNS (optional)
• Can be accessed from on-premises via Direct Connect/VPN
• Costs: ~$0.01/hour per AZ + $0.01/GB data processed

Without Private DNS:
  vpce-1234567890abcdef0-xxx.ec2.us-east-1.vpce.amazonaws.com

With Private DNS Enabled:
  ec2.us-east-1.amazonaws.com → Resolves to private ENI IP

Gateway vs Interface: S3 Endpoint Comparison

Amazon S3 supports both Gateway and Interface endpoints:

Recommendation: Use Gateway endpoint for S3/DynamoDB by default (it's free). Use Interface endpoint only when you need on-premises access or Transit Gateway routing.

How It Works

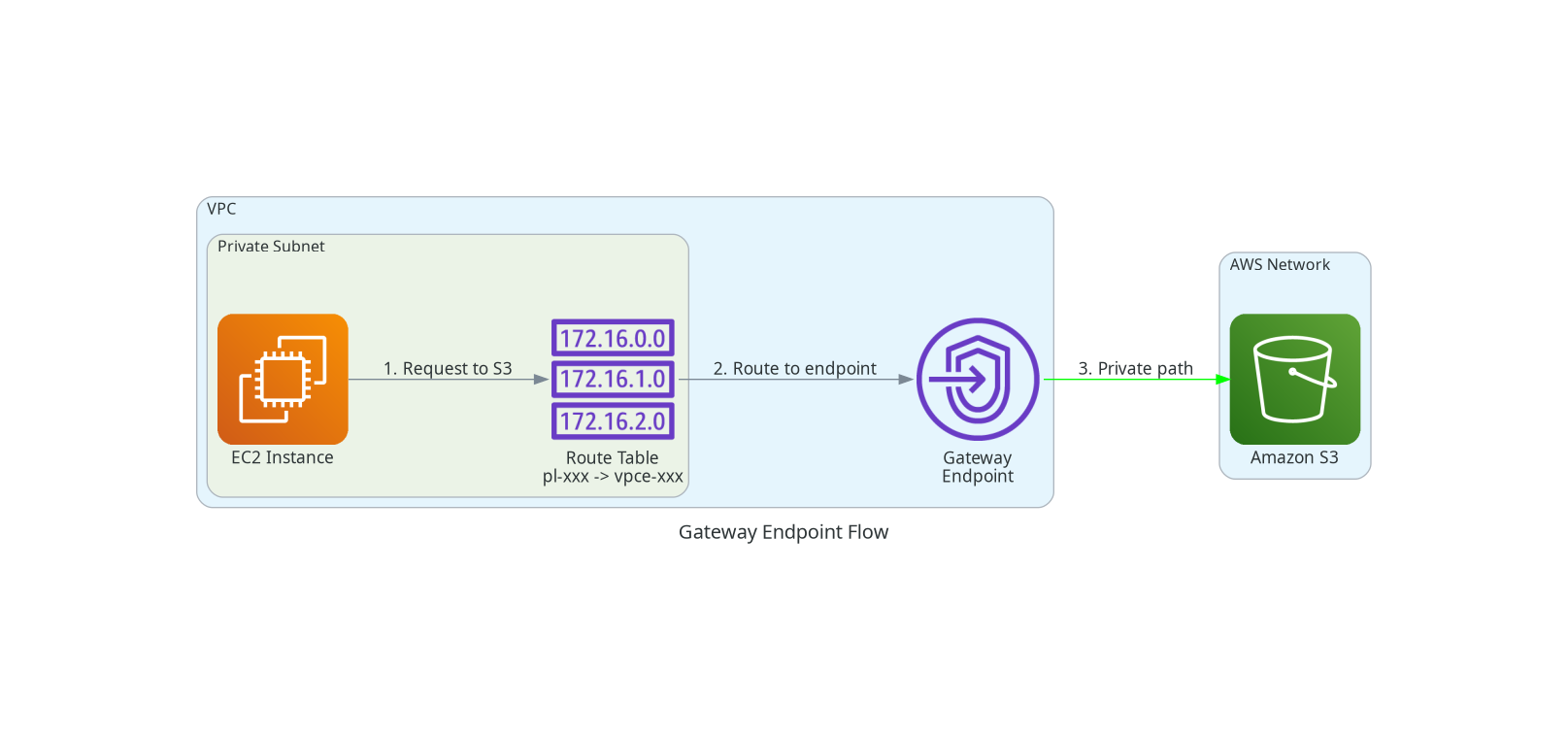

Gateway Endpoint Traffic Flow

1. Application in private subnet makes request to S3
2. Route table matches S3 prefix list → routes to Gateway endpoint
3. Traffic stays on AWS backbone network (never touches internet)
4. S3 responds via same path

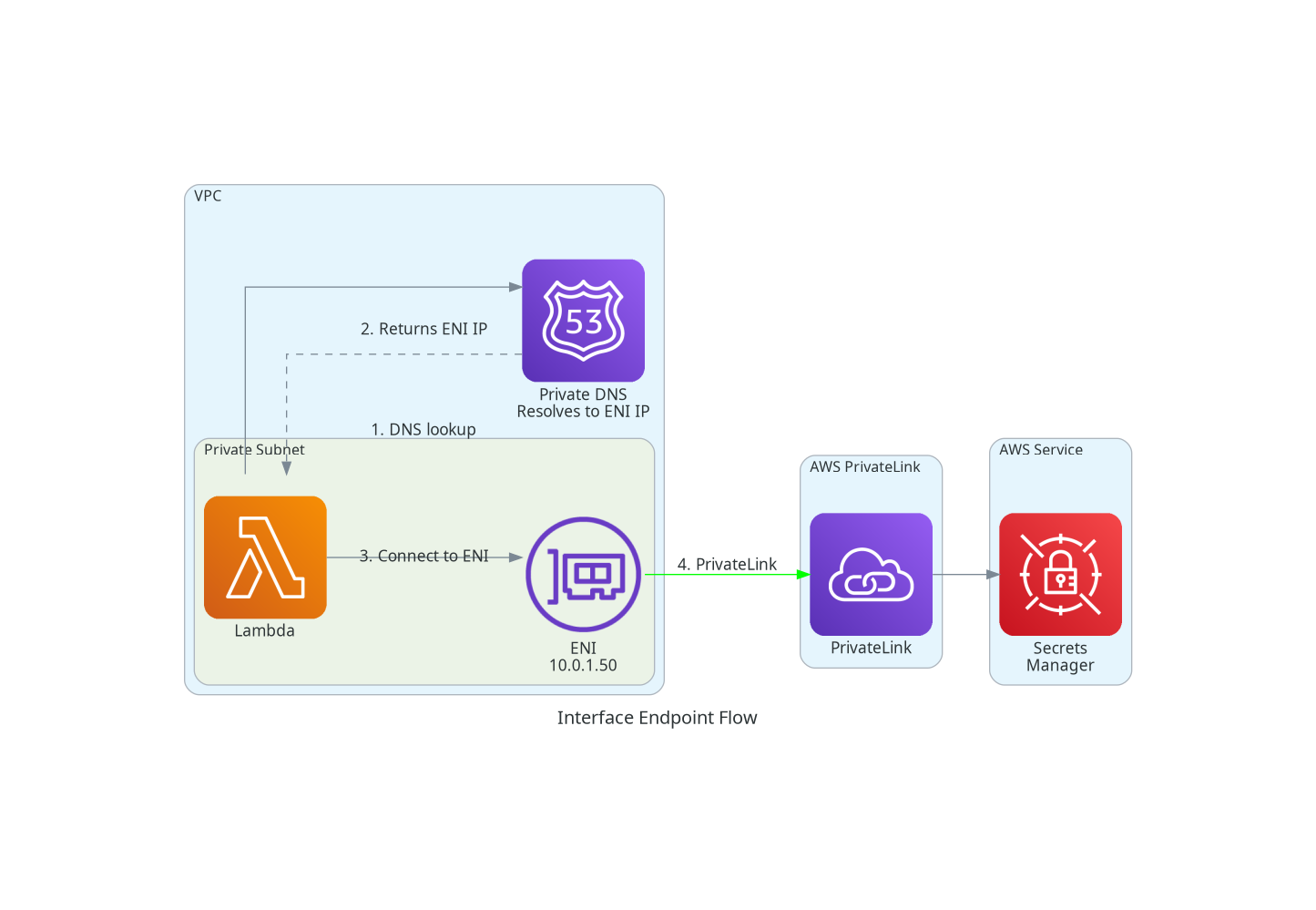

Interface Endpoint Traffic Flow

1. Application resolves service DNS (e.g., ec2.us-east-1.amazonaws.com)
2. Private DNS returns ENI private IP (e.g., 10.0.1.50)
3. Traffic routes to ENI in subnet
4. PrivateLink forwards traffic to AWS service
5. Response returns via same path

Cross-Region Connectivity (New in 2025)

AWS PrivateLink now supports native cross-region connectivity to select AWS services:

Supported Services for Cross-Region:
- Amazon S3
- Amazon ECR (Elastic Container Registry)
- Amazon Route 53

When creating endpoint:
1. Select "Enable cross Region endpoint"
2. Choose target service region
3. Access service in another region privately

This eliminates the need for cross-region VPC peering or exposing traffic to the public internet.

Use Cases

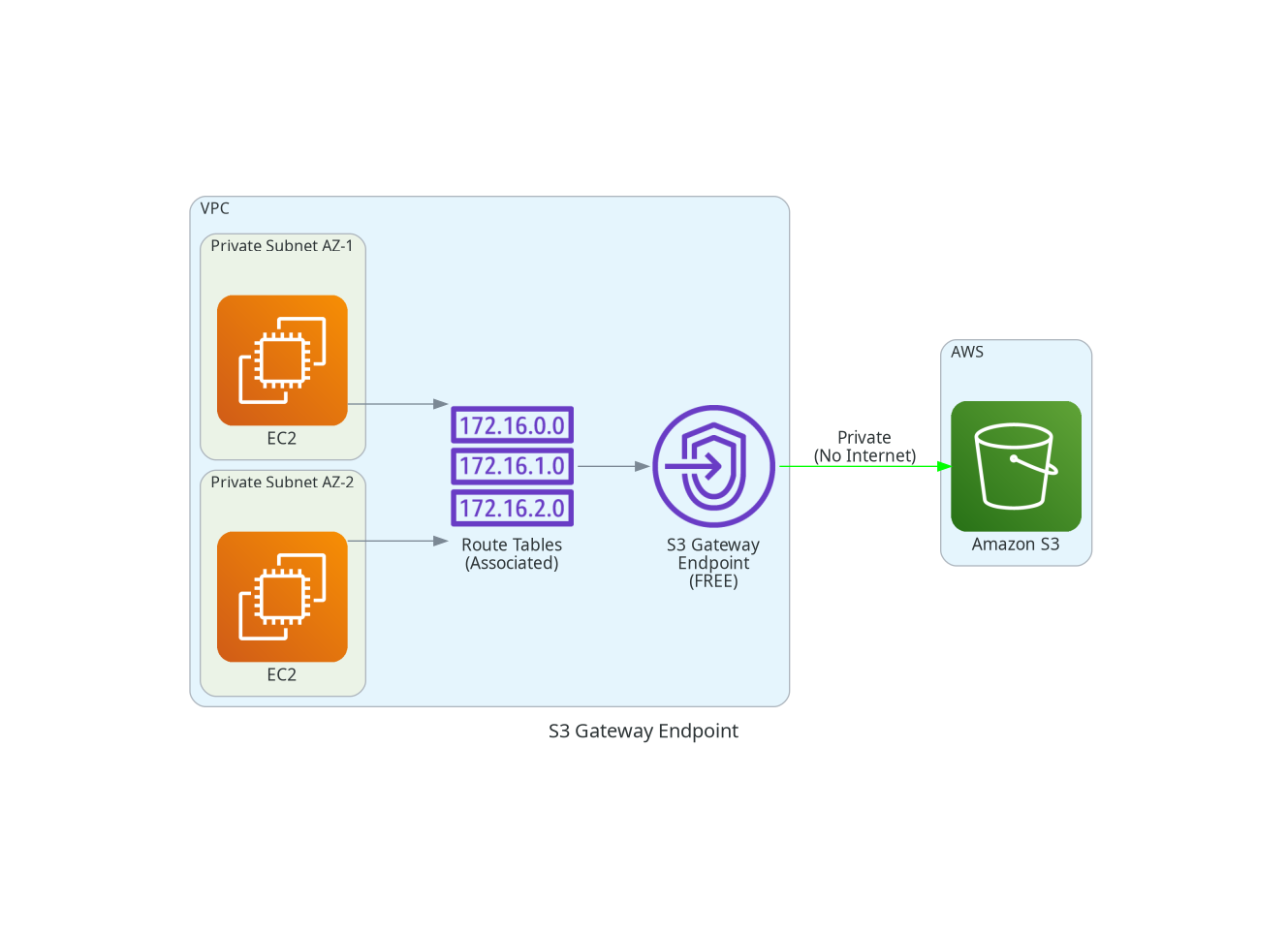

Use Case 1: Private S3 Access (No Internet)

Scenario: EC2 instances in private subnets need to access S3 without internet connectivity.

Solution:

• Create S3 Gateway endpoint in VPC
• Associate with route tables for private subnets
• No NAT Gateway required
• Cost: FREE

aws ec2 create-vpc-endpoint \
  --vpc-id vpc-1234567890abcdef0 \
  --service-name com.amazonaws.us-east-1.s3 \
  --route-table-ids rtb-1234567890abcdef0

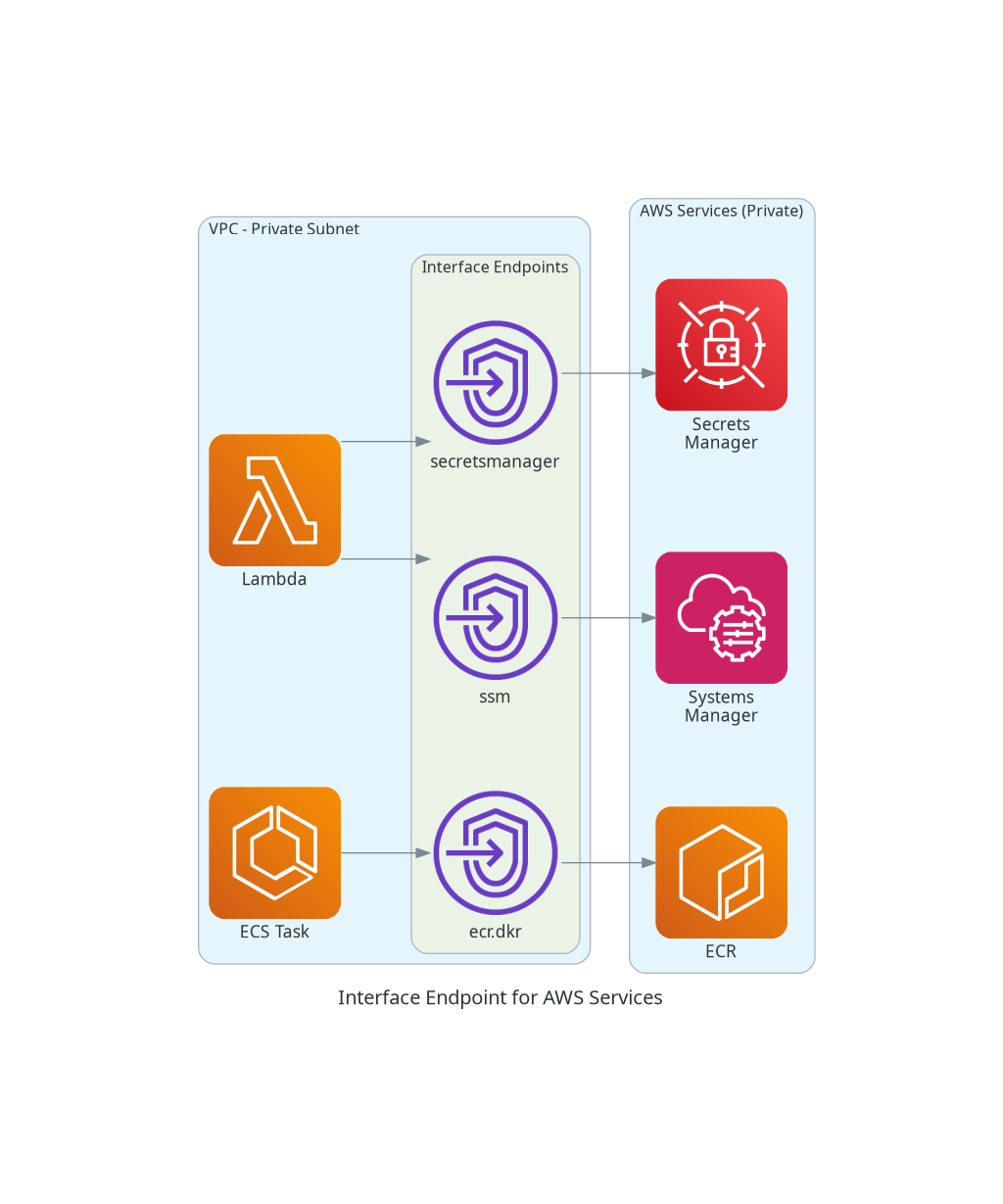

Use Case 2: Private Access to AWS Services

Scenario: Lambda functions in VPC need to call Secrets Manager without internet access.

Solution:

• Create Interface endpoint for Secrets Manager
• Enable Private DNS
• Lambda resolves secretsmanager.us-east-1.amazonaws.com to private IP
• Cost: ~$7.30/month/AZ

Use Case 3: On-Premises Access to S3

Scenario: On-premises servers connected via Direct Connect need private S3 access.

Solution:

• Gateway endpoint won't work (not accessible from on-prem)
• Create S3 Interface endpoint
• Configure Direct Connect to route to VPC
• On-prem DNS resolves S3 to interface endpoint IP
• Traffic flows privately over Direct Connect

Use Case 4: Reduce NAT Gateway Costs

Scenario: High data transfer to S3 causing expensive NAT Gateway bills.

Cost Comparison:

Solution: Replace NAT Gateway S3 traffic with Gateway endpoint (78-100% savings).

Endpoint Policies

Both Gateway and Interface endpoints support endpoint policies to control access:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AllowSpecificBucket",
      "Effect": "Allow",
      "Principal": "*",
      "Action": [
        "s3:GetObject",
        "s3:PutObject"
      ],
      "Resource": [
        "arn:aws:s3:::my-company-bucket",
        "arn:aws:s3:::my-company-bucket/*"
      ]
    }
  ]
}

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AllowFromSpecificVPC",
      "Effect": "Allow",
      "Principal": "*",
      "Action": "*",
      "Resource": "*",
      "Condition": {
        "StringEquals": {
          "aws:sourceVpc": "vpc-1234567890abcdef0"
        }
      }
    }
  ]
}

Best Practices

Gateway Endpoint Best Practices

1. Create by default in every VPC

   • S3 and DynamoDB Gateway endpoints are FREE
   • AWS VPC creation wizard now offers this option
   • Reduces NAT Gateway costs immediately

2. Associate with all private subnet route tables

   • Ensure all private subnets can use the endpoint
   • Don't forget new subnets added later

3. Use endpoint policies for security

   • Restrict to specific S3 buckets
   • Prevent data exfiltration to unauthorized buckets

Interface Endpoint Best Practices

1. Enable Private DNS when possible

   • Applications work without code changes
   • Service DNS resolves to private IP automatically

2. Deploy in multiple AZs for HA

   • Each AZ has its own ENI
   • Provides fault tolerance
   • Consider cost implications (~$7.30/month/AZ)

3. Use security groups

   • Control which resources can access the endpoint
   • Restrict to specific application security groups

4. Consider consolidated endpoints

   • Use VPC Lattice for service mesh scenarios
   • Share endpoints across accounts with RAM

Cost Optimization

1. Always use Gateway for S3/DynamoDB - It's free
2. Consolidate interface endpoints - One endpoint serves entire VPC
3. Evaluate necessity - Not all services need private endpoints
4. Compare vs NAT Gateway - Interface endpoints are cheaper for high-volume services

Common Exam Scenarios

Common Pitfalls

Pitfall 1: Using Interface Endpoint for S3 Unnecessarily

Mistake: Creating Interface endpoint for S3 when Gateway would work.

• Why it fails: Paying ~$7.30/month/AZ when free option exists
• Correct approach: Use Gateway endpoint unless you need on-prem access or Transit Gateway

Pitfall 2: Forgetting Route Table Association

Mistake: Creating Gateway endpoint but not associating with route tables.

• Why it fails: Traffic continues using NAT Gateway or fails
• Correct approach: Associate with all private subnet route tables

Pitfall 3: Not Enabling Private DNS

Mistake: Creating Interface endpoint without enabling Private DNS.

• Why it fails: Must use verbose endpoint-specific DNS names
• Correct approach: Enable Private DNS for seamless application integration

Pitfall 4: Single AZ Deployment

Mistake: Creating Interface endpoint in only one AZ.

• Why it fails: Single point of failure
• Correct approach: Deploy in multiple AZs (balance cost vs availability)

Pitfall 5: Missing Security Group Rules

Mistake: Interface endpoint security group blocks required traffic.

• Why it fails: Applications can't reach the endpoint
• Correct approach: Allow inbound HTTPS (443) from application security groups

Pricing Summary

Gateway Endpoints

Interface Endpoints

Cost Comparison Example

1 TB monthly S3 data transfer:

Related Services

Quick Reference

Common Service Endpoint Names

CLI Commands

aws ec2 describe-vpc-endpoint-services \
  --filters Name=service-type,Values=Interface Name=owner,Values=amazon \
  --region us-east-1 \
  --query 'ServiceNames'

aws ec2 create-vpc-endpoint \
  --vpc-id vpc-xxx \
  --service-name com.amazonaws.us-east-1.secretsmanager \
  --vpc-endpoint-type Interface \
  --subnet-ids subnet-xxx subnet-yyy \
  --security-group-ids sg-xxx \
  --private-dns-enabled
